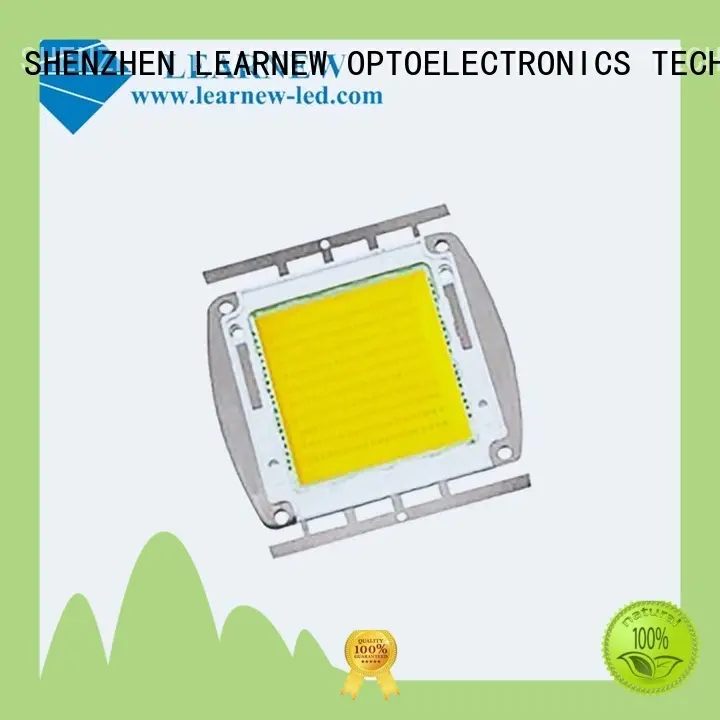

200W 130-150LM/W 5250mA 42-48V 66*66MM led high power lights
- Learnew Optoelectronics Technology always gives priority to customers and services. We continuously provide excellent services for numerous customers.
1. Each production step of Learnew chip led cob 10w is carefully scrutinized. The quality of the product is guaranteed to meet the standards of the pool accessories industry.
2. The product is deformation-resistant. With low dilatation coefficient, the product will not expand even used under high temperature or wet environment.
3. This product has been widely used in the industry due to its excellent properties.
4. Due to its very good characteristics, the market application range of products has gradually expanded.
Product parameters
| PART NUMBER | LN-CTS66XW-P200-48B | LN-CTS66XW-P200-48E |
| POWER | 200W | |
| CCT | PW=6000-6500K NW=4000-4500K WW=2800-3200K | |
| LUMINUOUS EFF | 130-150LM/W | 120-130LM/W |
| CHIPS | BRIDGELUX BXCD | EPISTAR UHB |
| IF | 5250mA | |
| VF | 42-48V | |
| CIRCUIT | 14PCS in series 15PCS in parallel | |
| WHOLE SIZE | 66*66MM | |
| LES | 48X48MM | |
| VIEW ANGLE | 120° | |
| CRI | >70 | |
| SUBSTRATE | PURE COPPER | |
Note:
A.PRICE IS WITHOUT VAT.
B.EX-WORK QUOTE BASE,SHIPPING COST IS NOT INCLUDED.
C.WARRANTY IS 3 YRS.
D.PREPAID IS REQUIRED ONCE ORDER CONFIRMED,TT BALANCE ONCE READY TO SHIPPING.
E.PRODUCTION CYCLE IS 7-10 WORK DAYS.
F.OEM & ODM IS ACCEPTABLE.
Product Details
Product application
Company Features
1. SHENZHEN LEARNEW OPTOELECTRONICS TECHNOLOGY CO LIMITED. has been stable for years in the market of high power led chip .
2. SHENZHEN LEARNEW OPTOELECTRONICS TECHNOLOGY CO LIMITED. has a large number of domestic senior experts and professors for brightest led chip development.
3. The work on intensifying the service idea of chip led cob 10w has never been stopped by SHENZHEN LEARNEW OPTOELECTRONICS TECHNOLOGY CO LIMITED.. Ask! cob led high power is SHENZHEN LEARNEW OPTOELECTRONICS TECHNOLOGY CO LIMITED. original service philosophy, which fully shows its own superiority. Ask!
Product Features
• Well-known chip material
• 99.99% gold wire bonding
• High flux per LED
• Low-temp & lead free reflow soldering
• More energy efficient than incandescent and most halogen lamps
• Low Voltage DC operated
• Instant light(less than 100ns)
• No UV
Product Dimensions
Product Electric Data
Part No. | Power(W) | Color | WLD(nm) | Luminous Flux(lm) | Voltage(V) | Current(mA) |
MW-100R14G30 | 100 | Red | 620-625 | 3800-4800 | 20-24 | 3500 |
MW-90R14G30 | 90 | Red | 620-625 | 3500-4300 | 20-24 | 3150 |
| MW-60R14G30 | 60 | Red | 620-625 | 2400-2900 | 20-24 | 2100 |
| MW-50R14G30 | 50 | Red | 620-625 | 2000-2400 | 20-24 | 1750 |
| MW-30R14G30 | 30 | Red | 620-625 | 1200-1400 | 20-24 | 1050 |
| MW-20R14G30 | 20 | Red | 620-625 | 800-1000 | 20-24 | 700 |
Optical character curves
Competitive Advantages of our LEDs:
1. Good quality guarantee, 50000 hours lifespan, 2-5 years warranty.
2. Professional engineers and experienced workers.
3. Short delivery time, normally 1-6 working days.
4. Customized specifications available in CCT, CRI, Lumen, VF, Color , etc.
5. Various module type, such as SMD LED 2835 , 5630 , 3014 , 5730 , 7020 , 4014 , 2020,
3030 , 3535 , 1W high power LED , 1-500W integrated LED / COB LED, Diode etc.
Our Services:
Reply your inquiry in 24 working hours
Well-trained and experienced staffs to answer all your inquiries in fluent English.
Strict quality control procedures before shipment.
Customized design is available.OME and ODM are welcomed
Delivery the goods to our customer all over the world with speed and precision.
