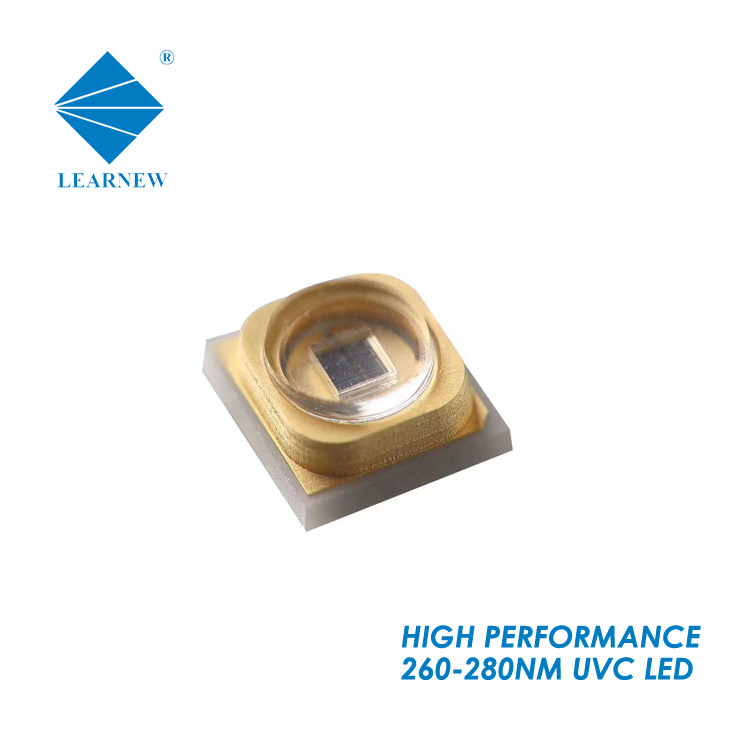

3535 SMD ALN Coppering Substrates 4040 1W 0.5W 250-260nm 260-270nm 270-280nm 220-235nm UVC LED
3535 SMD ALN Coppering Substrates 4040 1W 0.5W 250-260nm 260-270nm 270-280nm 220-235nm UVC LED
Brand Name
LEARNEW OPTO
Part Number
LN-SMD3535UVC-P3
VF
5-7V
Trade Terms
EXW,FOB,CFR,CIF
Payment Terms
T/T,Western Union,Paypal
Production cycle
7-12 working days standard,mass or customized order is depended.
MOQ
10
Service
OEM&ODM
Discount policy
>=10000PCS
Package
Anti-static plate,foam and bags.
Design Advantage
1,Quartz glass package 2,High radiant flux 3,Narrow Wavelength 4,Inorganic & Nitrogen package 5,Low thermal resistance
Certification: CE,ROHS,KC,UL
OEM & ODM: OEM ODM


UV LED Array series
UV LED R&D,Manufacture is one of important business structure in Learnew.Since 2013,Learnew first time present “Inorganic encapsulation” in high power UVA package,Core technical is we manage the most efficiency output and thermal resistance design.Even in 300-600W,Learnew UV series give best performance in lifetime and continual stable output.

Learnew UV(UVA & UVC) 1-600W series for different UV application,such as offset printer,exposure application,large-scale inkjet printer,3D printer,Printing & Curing application,Sterillization etc.Learnew standard design UVA(360-410nm) & UVC(260-280nm) for your pleasure need.


UV-CPOWERDominant WavelengthOptical PowerIFVFWHOLE SIZEVIEW ANGLELENSSUBSTRATELife spanJUNCTION TEMPERATURE
LN-SMD3535UVC-P33-5W270-280nm80-120mW500-700mA5-7V3.5*3.5MM120°QUARTZ GLASS LENSALN CopperingLM70=5000Hrs
LM50=10000Hrs
60C
260-270nm80-120mW
250-260nm80-120mW
LN-SMD3535UVC-P3D3W270-280nm50-70mW350-500mA5-7V3.5*3.5MM120°QUARTZ GLASS LENSALN Coppering60C
260-270nm50-70mW
250-260nm50-70mW



Product feature
  • ◪   Inorganic encapsulation

  • ◪   Lowest thermal resistance design

  • ◪   High efficiency output

  • ◪   High optical intensity design

    ◪   Narrow & single peak wavelength design

    ◪   Pure color output

    Note:
          A.PRICE IS WITHOUT VAT, AND KPCS=1000PCS.
          B.EX-WORK QUOTE BASE,SHIPPING COST IS NOT INCLUDED.
          C.WARRANTY IS 2 YRS.
          D.PREPAID IS REQUIRED ONCE ORDER CONFIRMED,TT BALANCE ONCE READY TO SHIPPING.
          E.PRODUCTION CYCLE IS 7-10 WORK DAYS.
          F.OEM & ODM IS ACCEPTABLE.

Product application


ICU hospitals, air purification, water purification, washing machines

Learnew's uvc led cob products are packaged in quartz glass, inorganic and nitrogen, with high radiant flux, narrow wavelength and low thermal resistance. They can destroy DNA in cells of microbial organisms (bacteria, viruses, spores, etc.) in a short time. Or the molecular structure of RNA, the cells can not be regenerated, and the bacterial virus loses its ability to self-replicate.
