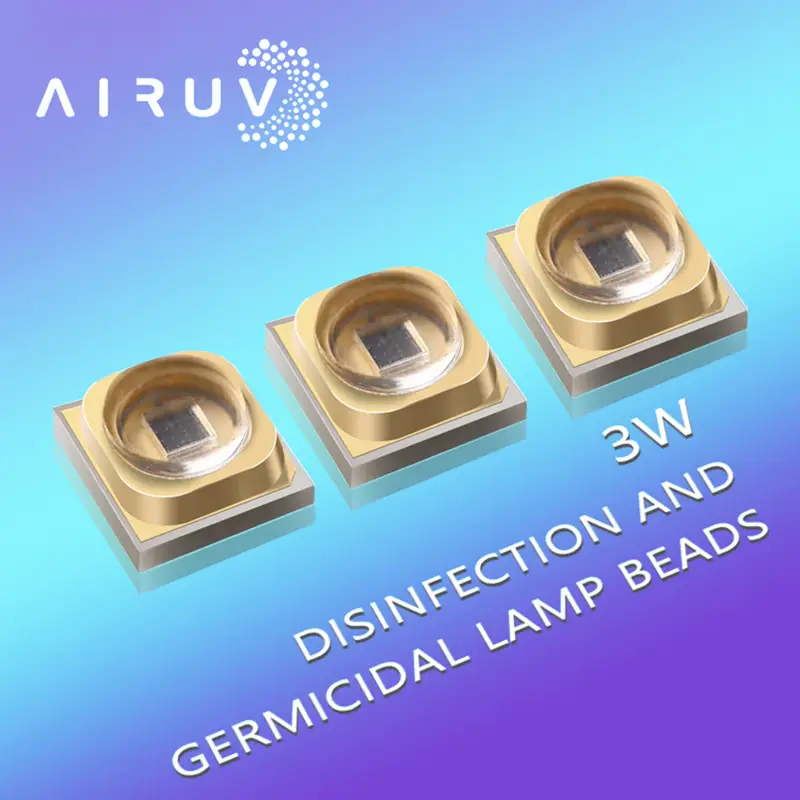

3535 SMD ALN Coppering Substrates 4040 1W 0.5W 250-260nm 260-270nm 270-280nm 220-235nm UVC LED
Learnew UV(UVA & UVC) 1-600W series for different UV application,such as offset printer,exposure application,large-scale inkjet printer,3D printer,Printing & Curing application,Sterillization etc.Learnew standard design UVA(360-410nm) & UVC(260-280nm) for your pleasure need.
| UV-C | POWER | Dominant Wavelength | Optical Power | IF | VF | WHOLE SIZE | VIEW ANGLE | LENS | SUBSTRATE | Life span | JUNCTION TEMPERATURE |
| LN-SMD3535UVC-P3 | 3-5W | 270-280nm | 80-120mW | 500-700mA | 5-7V | 3.5*3.5MM | 120° | QUARTZ GLASS LENS | ALN Coppering | LM70=5000Hrs LM50=10000Hrs | 60C |
| 260-270nm | 80-120mW | ||||||||||
| 250-260nm | 80-120mW | ||||||||||
| LN-SMD3535UVC-P3D | 3W | 270-280nm | 50-70mW | 350-500mA | 5-7V | 3.5*3.5MM | 120° | QUARTZ GLASS LENS | ALN Coppering | 60C | |
| 260-270nm | 50-70mW | ||||||||||
| 250-260nm | 50-70mW |
Product application
ICU hospitals, air purification, water purification, washing machines
Learnew's uvc led cob products are packaged in quartz glass, inorganic and nitrogen, with high radiant flux, narrow wavelength and low thermal resistance. They can destroy DNA in cells of microbial organisms (bacteria, viruses, spores, etc.) in a short time. Or the molecular structure of RNA, the cells can not be regenerated, and the bacterial virus loses its ability to self-replicate.
