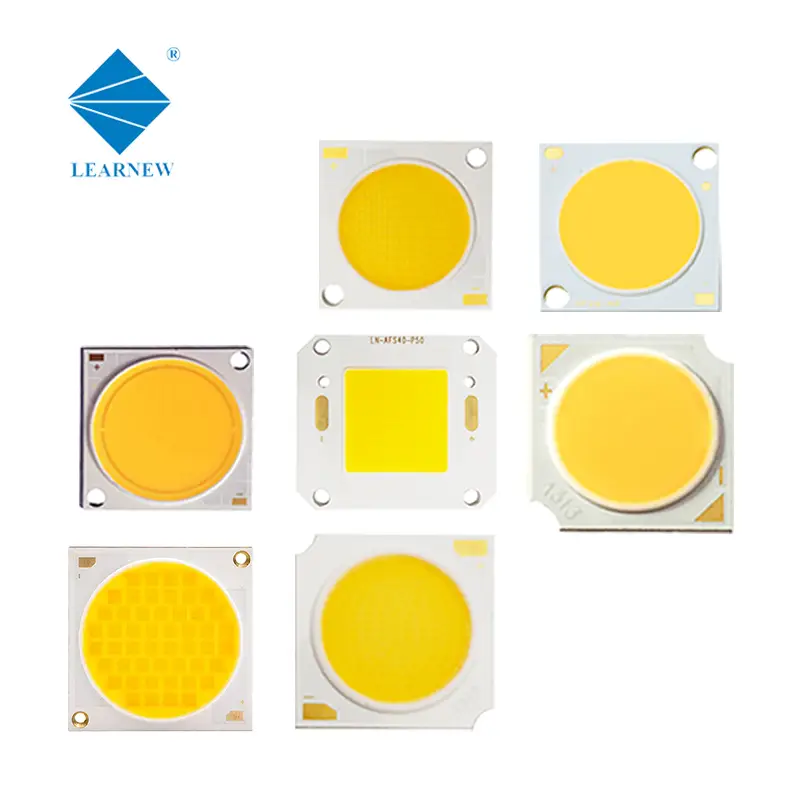

Flip Chip 1414 1919 2828 3838 4046 High Power 5w 10w 30w 50w 100w 200w 36V White Full Spectrum COB LED CHIP
7w 9w 15w 20w 30w 50w 100w 300w 500w 1000w 36v 220v ac dc full spectrum white 30
5.0
Brand Name:
LEARNEW OPTO
Part Number:
COB LED CHIP
VF:
9-45V
Trade Terms:
EXW,FOB,CFR,CIF
Payment Terms:
T/T,Western Union,Paypal
Production cycle:
10-40 working days standard,mass or customized order is depended.
MOQ:
100-10000PCS
Service:
OEM&ODM
Discount policy:
>=10000PCS
Package:
Anti-static plate,foam and bags.
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Certification
CE,ROHS
OEM & ODM
OEM ODM
Product Parameters
| FLIP CHIP | POWER | CCT | LM/W | IF | VF | WHOLE SIZE | EMIT SIZE | CRI |
| 1010 SERIES | 6W | 2700-6500K | 120-140 | 600mA | 9-10V | 10x10MM | R6MM | 70/80/90/95 |
| 9W | 1000mA | |||||||
| 1414 SERIES | 10W-15W | 2700-6500K | 120-140 | 280-400mA | 35-38V | 14x14MM | R11MM | 70/80/90/95 |
| 15W-30W | 400-800mA | |||||||
| 1919 SERIES | 25W-35W | 2700-6500K | 120-140 | 700-1000mA | 35-38V | 19x19MM | R17MM | 70/80/90/95 |
| 35W-50W | 900-1200mA | |||||||
| 2828 SERIES | 40W-60W | 2700-6500K | 120-140 | 1100-1500mA | 35-38V | 28X28MM | R23MM | 70/80/90/95 |
| 50W-80W | 1350-2200mA | |||||||
| 4046 SERIES | 40W-60W | 2700-6500K | 120-140 | 1250-1800mA | 30-33V | 40X46MM | 25*25MM | 70/80/90/95 |
| 80W-120W | 2500-4000mA | |||||||
| 150W-200W | 110-130 | 3500-4500mA | 42-48V | |||||
| LN-AFR88XW-P1500-72 | 1500-2000W | 2700-6500K | 100-140 | (7000-9000mA)*6 | 35-38V | R88MM | R72MM | 70/80/90/95 |
| LN-CFS55XW-P450-49 | 500-1000W | 2700-6500K | 100-140 | 16-21A | 45-50V | 55*55MM | R49MM | 70/80/90/95 |
| LN-CFR140XW-P1920-110 | 4000-6000W | 2700-6500K | 100-140 | (14-20A)*8 | 34-40V | R140MM | R110MM | 70/80/90/95 |
Design Advantage
1,High density
2,High power series
3,Low thermal resistance
4,SDCM<5
5,CRI available in 80/90/95+
6,Flip chip technology
7,Good stability
Application
1,LED spotlight
2,LED car light
3,LED downlight
4,LED tracking light
5,LED wall lamp
6,LED bulb
7,LED floodlight
8,LED streetlight
