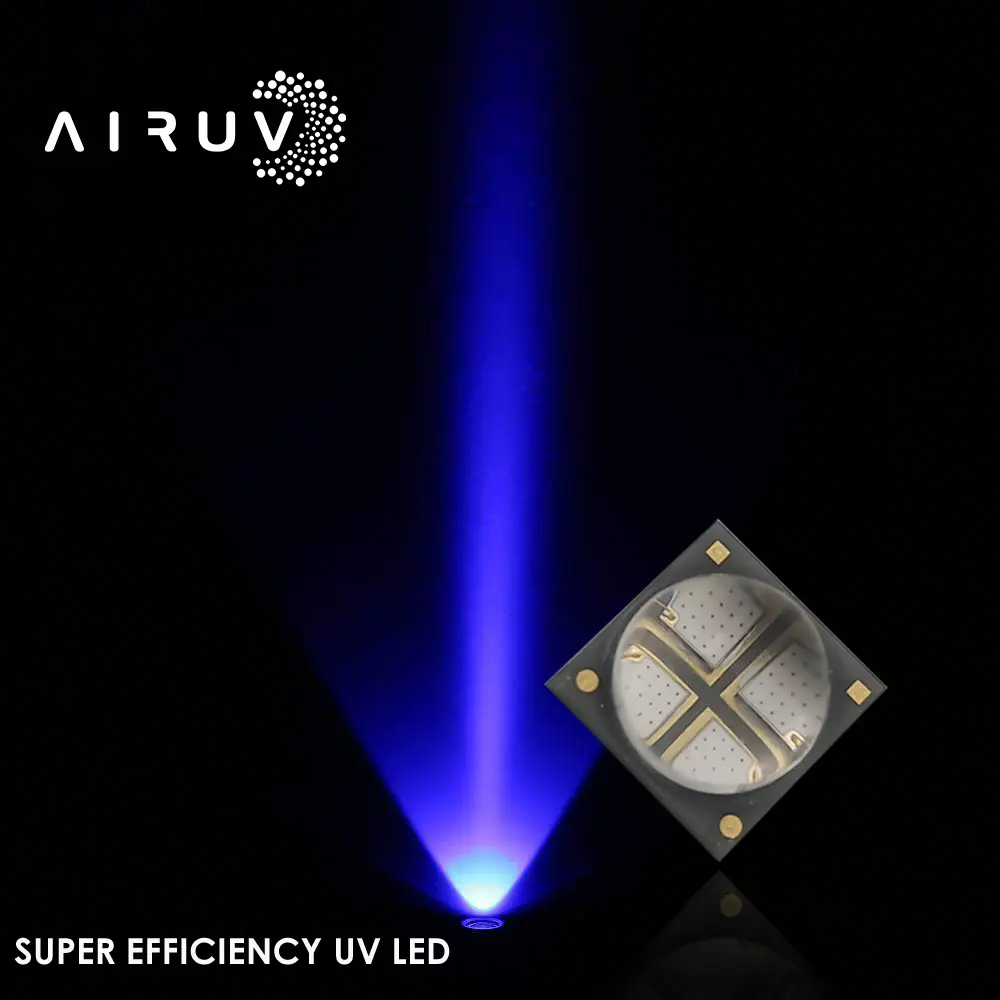

Customizable Learnew Factory Direct Sales uv Light 6-7v 10W 385Nm Led Diode 10W Lamp 395Nm Led UVA Chip
6868 10w chip uv led 395nm 385nm 365nm ultraviolet high power 10w ultraviolet uv
5.0
Brand Name:
LEARNEW OPTO
Part Number:
LN-SMD6868UV-P4
VF:
6.0-7.0V
Trade Terms:
EXW,FOB,CFR,CIF
Payment Terms:
T/T,Western Union,Paypal
Production cycle:
7-12 working days standard,mass or customized order is depended.
MOQ:
10
Service:
OEM&ODM
Discount policy:
>=10000PCS
Package:
Anti-static plate,foam and bags.
Design Advantage:
1,Long life span 2,low thermal resistance 3,High effiency 40%-50% 4,Ingorganic encapsulation
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Certification
CE,ROHS,KC,UL
OEM & ODM
OEM ODM
Product parameters
| UV-A | POWER | Dominant Wavelength | Optical Power | IF | VF | Circuit | WHOLE SIZE | Lighting Area | VIEW ANGLE | LENS | SUBSTRATE | CHIPS | Warranty |
| LN-SMD6868UV-P4 | 10W | 365nm | 3200-4000mW | 1500mA (Max=2A) | 6.0-7.0V | 2S2P | 6.8*6.8MM | R5.0MM | 60° | QUARTZ GLASS LENS | ALN Coppering | VERTICAL (EPILED & SA) | 10,000Hrs or 2 years |
| 385nm | 4000-4500mW | ||||||||||||
| 395nm | 4100-5000mW |
Design Advantage：
1,Long life span
2,low thermal resistance
3,High effiency 40%-50%
4,Ingorganic encapsulation
Application：
1,LED plant Growing Market
2,UV curing,Inkjet curing
3,Offset printer,3D printer and Exposure curing
Product Details
