    UV LED Array series
    UV LED R&D,Manufacture is one of important business structure in Learnew.Since 2013,Learnew first time present “Inorganic encapsulation” in high power UVA package,Core technical is we manage the most efficiency output and thermal resistance design.Even in 300-600W,Learnew UV series give best performance in lifetime and continual stable output.
    Learnew UV(UVA & UVC) 1-600W series for different UV application,such as offset printer,exposure application,large-scale inkjet printer,3D printer,Printing & Curing application,Sterillization etc.Learnew standard design UVA(360-410nm) & UVC(260-280nm) for your pleasure need.


    Product feature
    • ◪   Inorganic encapsulation

    • ◪   Lowest thermal resistance design

    • ◪   High efficiency output

    • ◪   High optical intensity design

    • ◪   Narrow & single peak wavelength design

    • ◪   Pure color output



    Product parameters


    UV-ALN-SMD3535UV-P1
    POWER5-10W
    Dominant Wavelength395/405nm
    Optical Power1050-1500mW
    IF700mA
    VF3.0-3.6V
    WHOLE SIZE3.5*3.5MM
    Lighting AreaR3.0MM
    VIEW ANGLE120°
    LENSSilica
    SUBSTRATECeramic
    CHIPS

    VERTICAL

    (EpiLED & LP)

    395nm UV LED Chip curing light 3535 SMD UVA LED Diodes Chip For UV curing Offset printer 7

    Note:
          A.PRICE IS WITHOUT VAT, AND KPCS=1000PCS.
          B.EX-WORK QUOTE BASE,SHIPPING COST IS NOT INCLUDED.
          C.WARRANTY IS 2 YRS.
          D.PREPAID IS REQUIRED ONCE ORDER CONFIRMED,TT BALANCE ONCE READY TO SHIPPING.
          E.PRODUCTION CYCLE IS 7-10 WORK DAYS.
          F.OEM & ODM IS ACCEPTABLE.


    Product Details


    395nm UV LED Chip curing light 3535 SMD UVA LED Diodes Chip For UV curing Offset printer 8
    395nm UV LED Chip curing light 3535 SMD UVA LED Diodes Chip For UV curing Offset printer 9
    395nm UV LED Chip curing light 3535 SMD UVA LED Diodes Chip For UV curing Offset printer 10

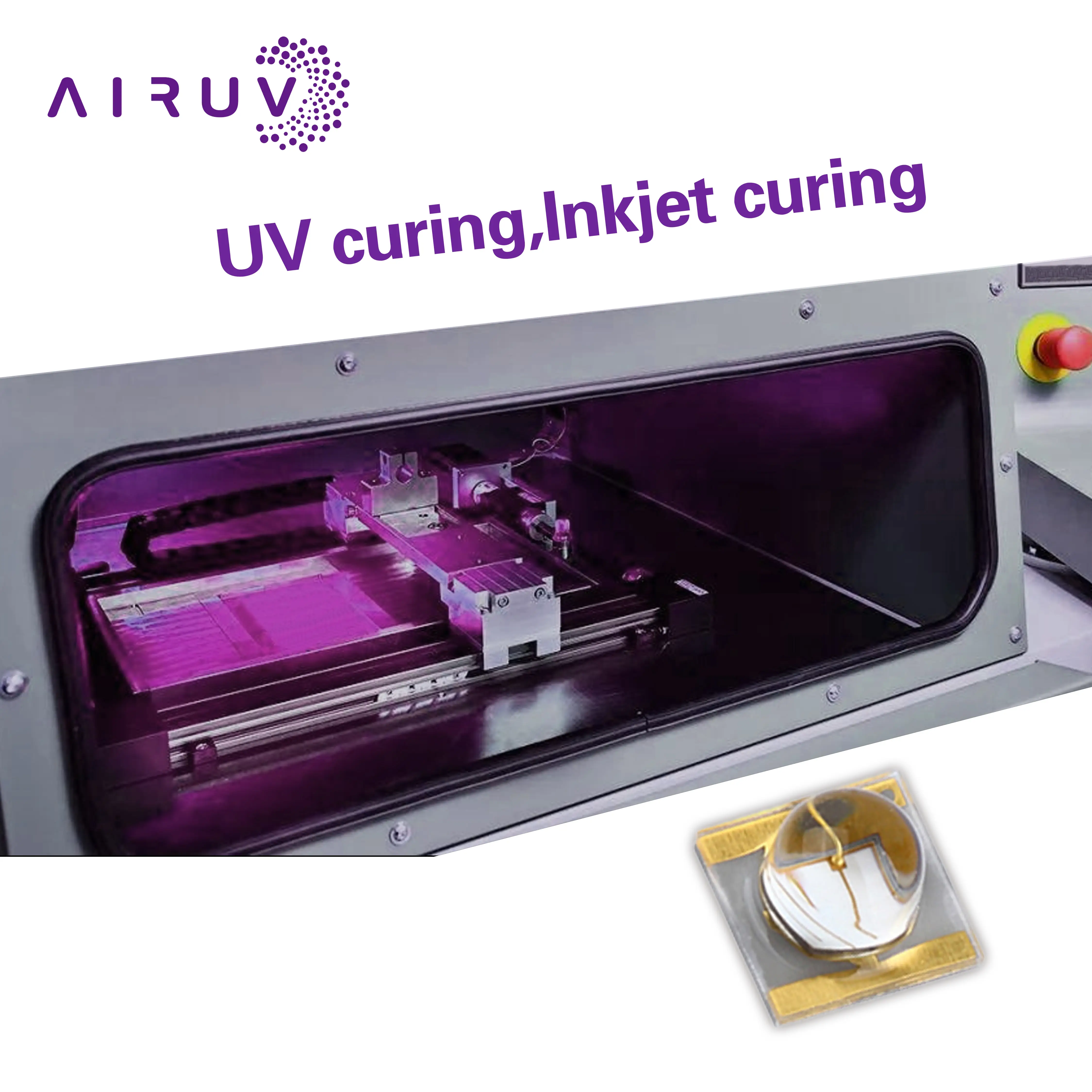

    Product application


    395nm UV LED Chip curing light 3535 SMD UVA LED Diodes Chip For UV curing Offset printer 11
    395nm UV LED Chip curing light 3535 SMD UVA LED Diodes Chip For UV curing Offset printer 12
    395nm UV LED Chip curing light 3535 SMD UVA LED Diodes Chip For UV curing Offset printer 13
    395nm UV LED Chip curing light 3535 SMD UVA LED Diodes Chip For UV curing Offset printer 14
    395nm UV LED Chip curing light 3535 SMD UVA LED Diodes Chip For UV curing Offset printer 15
    395nm UV LED Chip curing light 3535 SMD UVA LED Diodes Chip For UV curing Offset printer 16
    395nm UV LED Chip curing light 3535 SMD UVA LED Diodes Chip For UV curing Offset printer 17
    395nm UV LED Chip curing light 3535 SMD UVA LED Diodes Chip For UV curing Offset printer 18
