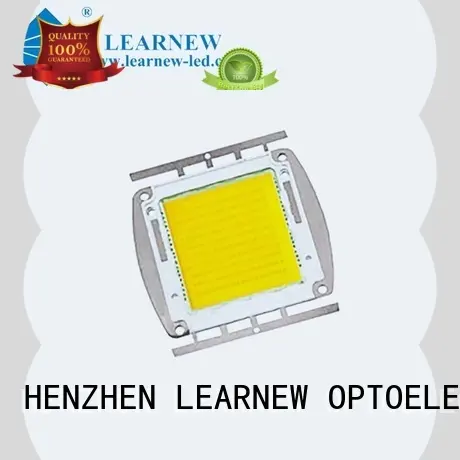

high quality high power cob led for led Learnew
1. The production of Learnew high power cob led abides by the international quality standards. The product is well-known for its better lumen-per-watt ratios
2. HENZHEN LEARNEW OPTOELECTRONICS TECHNOLOGY CO LIMITED. can make a guarantee for the quality of 10w led chip . Adopted the heat sink technology, it has a high lumen maintenance rate
3. 10w led chip is still valuable due to its advantages as high power cob led . Its beam angle much large than the traditional ones
Product parameters
| PART NUMBER | LN-CTS66XW-P200-48B | LN-CTS66XW-P200-48E |
| POWER | 200W | |
| CCT | PW=6000-6500K NW=4000-4500K WW=2800-3200K | |
| LUMINUOUS EFF | 130-150LM/W | 120-130LM/W |
| CHIPS | BRIDGELUX BXCD | EPISTAR UHB |
| IF | 5250mA | |
| VF | 42-48V | |
| CIRCUIT | 14PCS in series 15PCS in parallel | |
| WHOLE SIZE | 66*66MM | |
| LES | 48X48MM | |
| VIEW ANGLE | 120° | |
| CRI | >70 | |
| SUBSTRATE | PURE COPPER | |
Note:
A.PRICE IS WITHOUT VAT.
B.EX-WORK QUOTE BASE,SHIPPING COST IS NOT INCLUDED.
C.WARRANTY IS 3 YRS.
D.PREPAID IS REQUIRED ONCE ORDER CONFIRMED,TT BALANCE ONCE READY TO SHIPPING.
E.PRODUCTION CYCLE IS 7-10 WORK DAYS.
F.OEM & ODM IS ACCEPTABLE.
