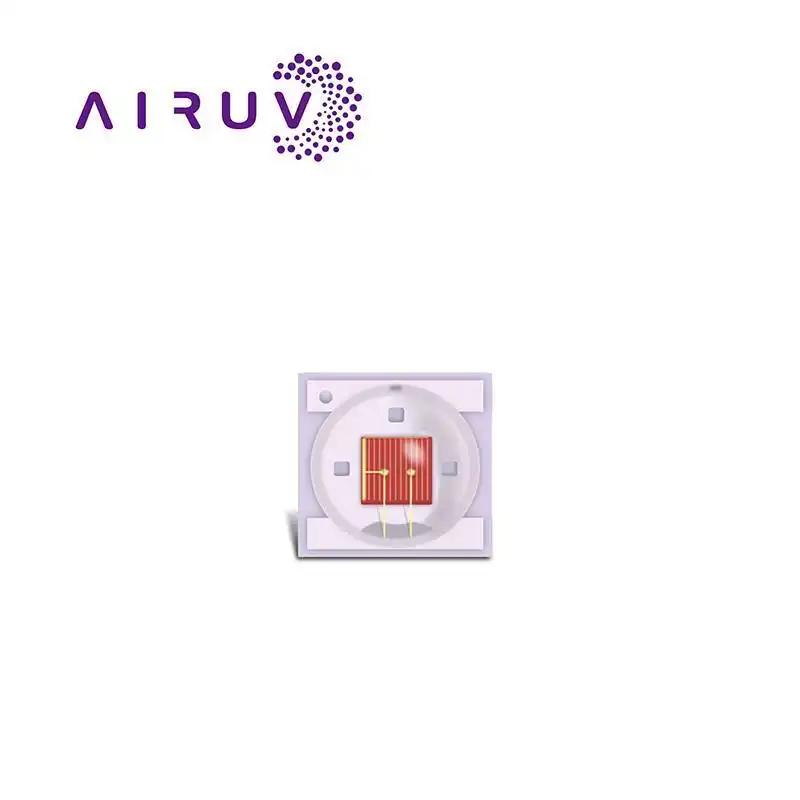

    Product parameters

    LEARNEW 2W 3535 730nm 740nm 840nm 850nm 940nm 950nm IR SMD LED with lens infrared color high 5



    • NAME
      3535 IR SMD LED CHIP
    • POWER
      2W
    • Dominant Wavelength
      730-740nm/840-850nm/940-950nm
    • Optical Power
      360-500mW/300-400mW
    • IF
      700mA(Max=1.0A)
    • VF
      1.3-1.6V/1.5-1.8V/1.7-2.0V
    • Circuit
      1S1P
    • VIEW ANGLE
      120°
    • WHOLE SIZE
      3.5*3.5MM
    • Warranty
      2 years or 10,000 Hrs
    3535 IR CHIP Design Advantage

    1,Long life span

    2,low thermal resistance

    3,High effiency 20%+

    4,Ingorganic encapsulation

    5,High density and intensity

    6,Special view angle in 30DEG or 120DEG

    7,Super power for IR series

    8,Narrow peak wavelength

    LEARNEW 2W 3535 730nm 740nm 840nm 850nm 940nm 950nm IR SMD LED with lens infrared color high 6
    IR SMD CHIP Appilcation

    1,Sensor

    2,Skin protection

    3,Cameras

    4,3D printing

    5,Virtual Reality

    6,Automotive

    7,Machine Vision

    8,Finger-vein Biometrics


    LEARNEW 2W 3535 730nm 740nm 840nm 850nm 940nm 950nm IR SMD LED with lens infrared color high 7
