Product parameters

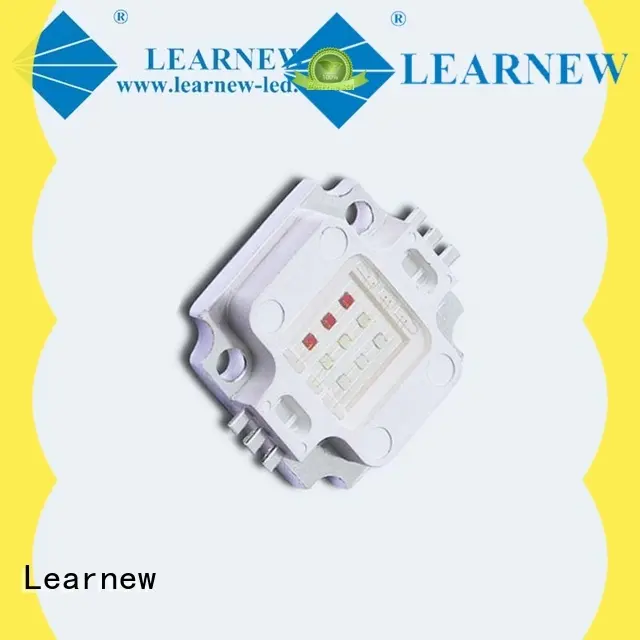

| PART NUMBER | LN-CTS20RGB-P9-EA | LN-CTS20RGB-P9-EB |
| POWER | 10W | |
| CCT | R=620-630nm G=520-530nm B=460-470nm | |
| LUMINUOUS EFF | R=120-150lm G=240-270lm B=60-80lm | R=90-100lm G=180-200lm B=50-70lm |
| CHIPS | Epistar or Epiled | Epiled |
| IF | 350-700mA | 350mA |
| VF | R=6.0-7.2V G=9.0-10.0V B=9.0-10.0V | |
| CIRCUIT | 3PCS in series 3PCS in parallel | |
| WHOLE SIZE | 20*20MM | |
| LES | 8X8MM | |
| VIEW ANGLE | 120° | |
| CRI | Non | |
| SUBSTRATE | PURE COPPER | |
Note:
       A.PRICE IS WITHOUT VAT.
       B.EX-WORK QUOTE BASE,SHIPPING COST IS NOT INCLUDED.
       C.WARRANTY IS 3 YRS.
       D.PREPAID IS REQUIRED ONCE ORDER CONFIRMED,TT BALANCE ONCE READY TO SHIPPING.
       E.PRODUCTION CYCLE IS 7-10 WORK DAYS.
       F.OEM & ODM IS ACCEPTABLE.
Product Details
Product application
| Product Name | High Power LED Chip 3 Watt | Product Model | HQS-3W |
| Power Dissipation | 3W | Light Color | White |
| Forward Voltage | 3.2-4.0V | Viewing Angle | 120° |
| Forward Current | 700-750mA | Operating Temperature | -40~+60 ℃ |
| Luminous Flux | 240-260LM,260-280LM,280-300LM | Storage Temperature | -40~+85 ℃ |
| Color Temperature | 3000-6500K | Soldering Temperature | 180℃ |
| High Power LED SERIES SPECIFICATION | ||||||
| Product Name | Light Color | CCT/Wavelength | Voltage | Current | Lumen | Remark |
| 1-3W High Power LED | Gold Yellow | 2000-2200K | 2.8-3.6V | 350-700mA | 120-260LM | CRI70,80,90 |
| 1-3W High Power LED | White | 3000-15000K | 2.8-3.6V | 350-700mA | 120-320LM | CRI70,80,90,95+ |
| High Power UV LED | UV | 365-370nm | 3.0-3.6V | 350-700mA | / | Epileds Chip 370-380-390-400-410-420nm |
| High Power UV LED | UV | 370-420nm | 3.0-3.6V | 350-700mA | / | |
| High Power Blue LED | Blue | 440-470nm | 3.0-3.6V | 350-700mA | 10-30LM | 440-450-460-470nm |
| High Power Green LED | Green | 500-530nm | 3.0-3.6V | 350-700mA | 80-200LM | Epileds Chip |
| High Power Yellow LED | Yellow | 590-595nm | 2.0-2.6V | 350-700mA | 40-90LM | Epileds Chip |
| High Power Amber LED | Amber | 600-610nm | 2.0-2.6V | 350-700mA | 50-90LM | Epileds Chip |
| High Power Red LED | Red | 620-630nm | 2.0-2.6V | 350-700mA | 40-100LM | Epileds Chip |
| High Power Far Red | Far Red | 660-665nm | 2.0-2.6V | 350-700mA | 30-60LM | Epileds Chip |
| High Power IR LED | IR | 730-750nm | 2.0-2.6V | 350-700mA | / | Epileds Chip |
| High Power IR LED | IR | 850nm | 1.6-2.0V | 350-700mA | / | Epileds Chip |
| High Power IR LED | IR | 930-940nm | 1.6-1.8V | 350-700mA | / | Epileds Chip |
| 6 PINS RGB LED | RGB | R:620-630nm, 2.0-2.6V, 350mA, 30-100LM, 30mil/35mil/42mil Chip G:520-530nm, 3.0-3.6V, 350mA, 60-160LM, 30mil/35mil/45mil Chip B: 460-470nm, 3.0-3.6V, 350mA, 10-30LM, 30mil/35mil/45mil | ||||
| 8 PINS RGBW LED | RGBW | R:620-630nm, 2.0-2.6V, 350mA, 30-100LM, 30mil/35mil/42mil Chip G:520-530nm, 3.0-3.6V, 350mA, 60-160LM, 30mil/35mil/45mil Chip B: 460-470nm, 3.0-3.6V, 350mA, 10-30LM, 30mil/35mil/45mil W: 3000-7000K, 3.0-3.6V, 350mA, 70-150LM, 30mil/35mil/38mil/45mil | ||||
| 10 PINS RGBWA LED | RGBWA | R:620-630nm, 2.0-2.6V, 350mA, 30-100LM, 30mil/35mil/42mil Chip G:520-530nm, 3.0-3.6V, 350mA, 60-160LM, 30mil/35mil/45mil Chip B: 460-470nm, 3.0-3.6V, 350mA, 10-30LM, 30mil/35mil/45mil W: 3000-7000K, 3.0-3.6V, 350mA, 70-150LM, 30mil/35mil/38mil/45mil A: 590-595nm, 2.0-2.6V, 350mA, 40-70LM, 30mil/42mil | ||||
| Model | SP1WRGBW |
| Led diode | 14.68x5.2mm |
| PCB Size | diameter of 20mm |
| LED angle | 120degree |
| Voltage | 2-2.4v(red)/3.2-3.6v(green)/3.2-3.6v(white/blue) |
| Current | 400ma(red)/500ma(green/blue/white) |
| Wavelength | 620-630nm(red)/520-523nm(green)/460-464nm(blue)6500-7000k(white) |
| Luminous Flux | 40-60lm(red)/120-140lm(green)/10-40lm(blue)120-140lm(white) |
| Trade terms | FOB ,CIF ,CFR ,EXW |
| Payment terms | T/T IN ADVANCE ,Western Union ,Paypal ,Money gram |
| Sample time | 1-3 DAYS |
| Lead time | 3-5 DAYS |
| Shipment | BY DHL/TNT/FEDEX/UPS/AIR/SEA |
| Supply capability | 10000pcs/day |
| Sample availability | (Yes / No)YES |
| Warranty Service | 2 years |
| Warranty conditions | For the artificial damage of each product ,we can’t provide new or repair it .If it’s our quality problem ,we’ll replace or repair it . |
