Company Advantages1. Learnew
led chip model is manufactured by experienced workers with optimum raw materials. It is designed to be excellent in thermal resistance
2. Successful customer service communications and interactions are important to SHENZHEN LEARNEW OPTOELECTRONICS TECHNOLOGY CO LIMITED.. It is free of any light spot
3. The product provides a sound seal system. The vertical seal of each panel is made of thick and tongue-type extruded aluminum laminated with a rubber seal. Its epoxy resin protects its chips from oxidation and corrosion
4. It will not consume extra energy. The certification provided by the Environmental Protection Agency is considered the most authentic in this regard, and the Energy Star label is the mark of this certification. The product is a step forward to more efficient energy use
UV LED Array series
UV LED R&D,Manufacture is one of important business structure in Learnew.Since 2013,Learnew first time present “Inorganic encapsulation” in high power UVA package,Core technical is we manage the most efficiency output and thermal resistance design.Even in 300-600W,Learnew UV series give best performance in lifetime and continual stable output.
Learnew UV(UVA & UVC) 1-600W series for different UV application,such as offset printer,exposure application,large-scale inkjet printer,3D printer,Printing & Curing application,Sterillization etc.Learnew standard design UVA(360-410nm) & UVC(260-280nm) for your pleasure need.
Product feature
◪ Inorganic encapsulation
◪ Lowest thermal resistance design
◪ High efficiency output
◪ High optical intensity design
◪ Narrow & single peak wavelength design
◪ Pure color output

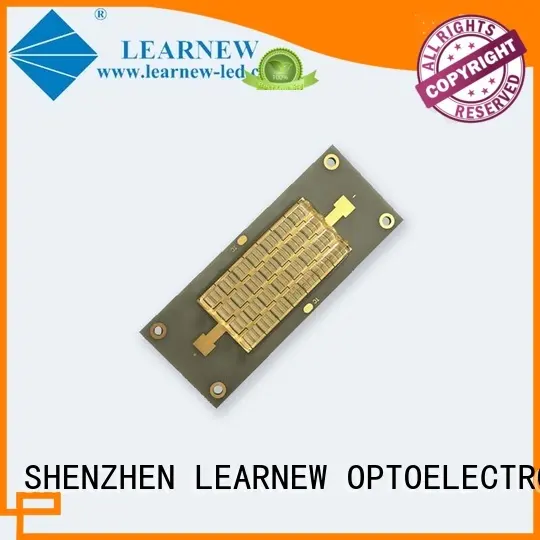

UV-A | LN-CVB75UV-P84 |
POWER | 135-188W |
Dominant Wavelength | 365nm | 385nm | 395nm |
Optical Power | 65000-85000mW | 82000-96000mW | 86000-100000mW |
IF | 6000-8400mA (Test=6000mA) |
VF | 23-26V |
WHOLE SIZE | 75*30MM |
Lighting Area | 40*20MM |
VIEW ANGLE | 30° |
LENS | QUARTZ GLASS LENS |
SUBSTRATE | ALN Coppering |
CHIPS | VERTICAL EPISTAR
(LG or HPO) |
Note:
A.PRICE IS WITHOUT VAT, AND KPCS=1000PCS.
B.EX-WORK QUOTE BASE,SHIPPING COST IS NOT INCLUDED.
C.WARRANTY IS 2 YRS.
D.PREPAID IS REQUIRED ONCE ORDER CONFIRMED,TT BALANCE ONCE READY TO SHIPPING.
E.PRODUCTION CYCLE IS 7-10 WORK DAYS.
F.OEM & ODM IS ACCEPTABLE.
Company Features1. SHENZHEN LEARNEW OPTOELECTRONICS TECHNOLOGY CO LIMITED. is a led cob 200w strong brand with great values and reputation.
2. Equipped with professional technician, SHENZHEN LEARNEW OPTOELECTRONICS TECHNOLOGY CO LIMITED. aims to produce high quality
uv led chip .
3. SHENZHEN LEARNEW OPTOELECTRONICS TECHNOLOGY CO LIMITED. will stick to continuous improvement and innovation on led chip model . Please contact us!
