Product parameters

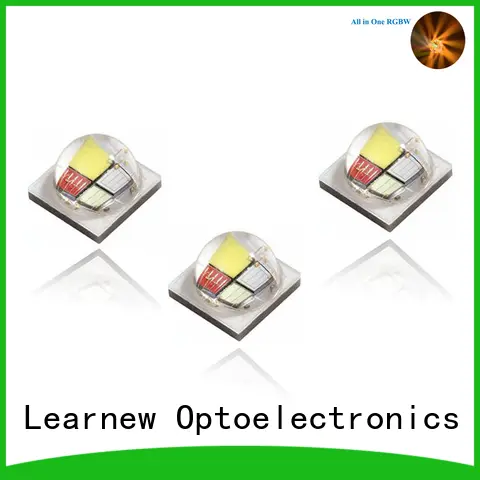

PART NUMBER | LN-SMD3535RGBW-P4-LP |
CCT | R=620-630nm;G=520-530nm;B=460-470nm;W=3000K/6000K |
LUMINUOUS EFF | R=30-40lm;G=60-70lm;B=20-30lm;W=70-90lm |
POWER | 4watt |
IF | 350mA |
VF | R=2.0-2.4V;G=3.0-3.4V;B=3.0-3.4V;W=3.0-3.4V |
WHOLE SIZE | 3.5*3.5mm |
LENS | R1.5MM |
VIEW ANGLE | 120DEG |
SUBSTRATE | Ceramic |
CHIPS | Epiled & Flip CHIP |
CIRCUIT | 1PCS in series;1PCS in parallel;4 circuit |
Design Advantage:
1,Ceramic leadframe.
2,High ESD pass
3,Standard A Class chips.
4,Cost performance.
5,Gold wire bond.
6,Easy reflow sodering.
Application:
1,LED stage light
2,LED landscape lighting
Product Details
we have professional laboratories and researchers, and carry out a large number of experiments and tests on the ratio of SMD LED CHIP to ensure the scientific and effective spectrum. We offer free consultation services for all your commercial grow project needs, warmly welcome to send us the engineering drawing of your project to get the lighting solutions for your plants.
Product Features
• Well-known chip material
• 99.99% gold wire bonding
• High flux per LED
• Low-temp & lead free reflow soldering
• More energy efficient than incandescent and most halogen lamps
• Low Voltage DC operated
• Instant light(less than 100ns)
• No UV
Product Dimensions
Product Electric Data
Part No. | Power(W) | Color | WLD(nm) | Luminous Flux(lm) | Voltage(V) | Current(mA) |
MW-100R14G30 | 100 | Red | 620-625 | 3800-4800 | 20-24 | 3500 |
MW-90R14G30 | 90 | Red | 620-625 | 3500-4300 | 20-24 | 3150 |
MW-60R14G30 | 60 | Red | 620-625 | 2400-2900 | 20-24 | 2100 |
MW-50R14G30 | 50 | Red | 620-625 | 2000-2400 | 20-24 | 1750 |
MW-30R14G30 | 30 | Red | 620-625 | 1200-1400 | 20-24 | 1050 |
MW-20R14G30 | 20 | Red | 620-625 | 800-1000 | 20-24 | 700 |
Optical character curves
Competitive Advantages of our LEDs:
1. Good quality guarantee, 50000 hours lifespan, 2-5 years warranty.
2. Professional engineers and experienced workers.
3. Short delivery time, normally 1-6 working days.
4. Customized specifications available in CCT, CRI, Lumen, VF, Color , etc.
5. Various module type, such as SMD LED 2835 , 5630 , 3014 , 5730 , 7020 , 4014 , 2020,
3030 , 3535 , 1W high power LED , 1-500W integrated LED / COB LED, Diode etc.
