Company Advantages1. Learnew complies with all standards of quality and safety. It has passed wires anti-aging test, circuit safety test, radiation test, etc. The product has good performance in heat dissipation
2. This well-designed product achieves fantastic lighting effects, which is not only good for people's eyes but also for the mood. The product is water-resistant and damp-proof
3. Characteristic feature of
led chip size is . It can produce a large number of lumens consuming less energy
4. There are many functions for led chip size for your choice. It is free of any light spot
UV LED Array series
UV LED R&D,Manufacture is one of important business structure in Learnew.Since 2013,Learnew first time present “Inorganic encapsulation” in high power UVA package,Core technical is we manage the most efficiency output and thermal resistance design.Even in 300-600W,Learnew UV series give best performance in lifetime and continual stable output.
Learnew UV(UVA & UVC) 1-600W series for different UV application,such as offset printer,exposure application,large-scale inkjet printer,3D printer,Printing & Curing application,Sterillization etc.Learnew standard design UVA(360-410nm) & UVC(260-280nm) for your pleasure need.
Product feature
◪ Inorganic encapsulation
◪ Lowest thermal resistance design
◪ High efficiency output
◪ High optical intensity design
◪ Narrow & single peak wavelength design
◪ Pure color output

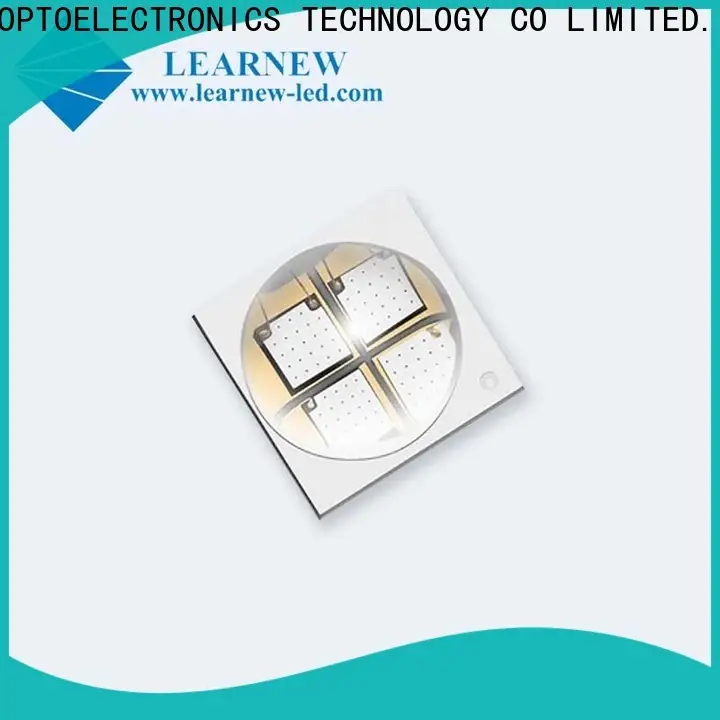

| UV-A | LN-SMD6868UV-P4 |
| POWER | 5-10W |
| Dominant Wavelength | 365nm | 385nm | 395nm |
| Optical Power | 3200-4000mW | 4000-4500mW | 4100-5000mW |
| IF | 500-700mA
(Test=700mA) |
| VF | 12-15V |
| WHOLE SIZE | 6.8*6.8MM |
| Lighting Area | R5.0MM |
| VIEW ANGLE | 60° |
| LENS | QUARTZ GLASS LENS |
| SUBSTRATE | ALN Coppering |
| CHIPS | VERTICAL EPISTAR
(LG or HPO) |
Note:
A.PRICE IS WITHOUT VAT, AND KPCS=1000PCS.
B.EX-WORK QUOTE BASE,SHIPPING COST IS NOT INCLUDED.
C.WARRANTY IS 2 YRS.
D.PREPAID IS REQUIRED ONCE ORDER CONFIRMED,TT BALANCE ONCE READY TO SHIPPING.
E.PRODUCTION CYCLE IS 7-10 WORK DAYS.
F.OEM & ODM IS ACCEPTABLE.
Company Features1. Learnew is an influential led chip size supplier.
2. By technology innovation, the quality of
smd led chips is greatly improved.
3. SHENZHEN LEARNEW OPTOELECTRONICS TECHNOLOGY CO LIMITED. aims to create a famous brand with high efficiency, high quality and excellent service. Call!
