Our products
◪ Right circuit according to different application.
◪ Solve the series problem,such as uneven current in circuit,poor heat dissipation,Droop effect.
◪ IC driver with high-voltage chips arrangment perfect solve the problem of high dropout voltage.
◪ High PF provide,standard performance is PFC 0.92.
◪ High power efficiency provide,P.Eff 0.85.
Product parameters

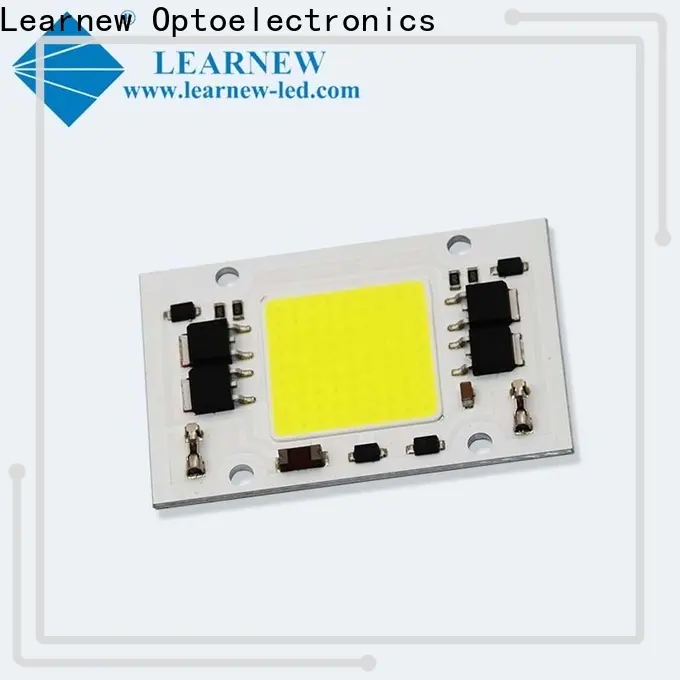

| P/N | LN-AFS40XW-P50AC-25 | LN-AFS40FS-P50AC-25 | |
| POWER | 50W | ||
| Wavelength or CCT | 3000-6000K | 380-780nm | |
| CHIPS | Flip chip | ||
| VF | AC200-240V | ||
| PF Value | >0.90 | ||
| Power Efficacy | >0.85 | ||
| WHOLE SIZE | 40*60mm | ||
| LES | 25*25mm | ||
| VIEW ANGLE | 120DEG | ||
| Luminous efficacy | 90-110lm/w | 100-120lm/w | 30-40umol/s |
| Standard | CLS A | CLS B | |
| Plug and Play | Plug type | ||
Note:
A.PRICE IS WITHOUT VAT.
B.EX-WORK QUOTE BASE,SHIPPING COST IS NOT INCLUDED.
C.WARRANTY IS 1-3 YRS.
D.PREPAID IS REQUIRED ONCE ORDER CONFIRMED,TT BALANCE ONCE READY TO SHIPPING.
E.PRODUCTION CYCLE IS 7-10 WORK DAYS.
F.OEM & ODM IS ACCEPTABLE.
