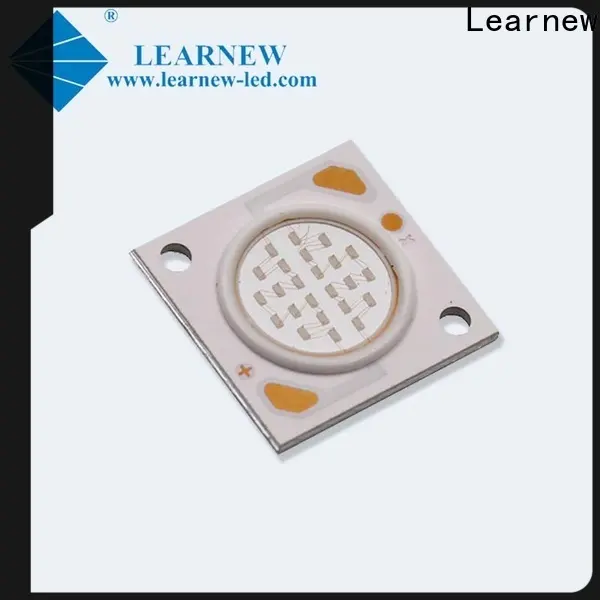

Learnew popular cob led yellow supplier for headlamp
Product parameters
| ITEM | POWER | CCT | Luminous flux | IF | VF | WHOLE SIZE | LES SIZE | VIEW ANGLE | SUSTRATE | CHIPS |
| 1919 series | 15w | RED=620-630nm | 40-60lm/w | 300mA | 30-36V | 19x19mm | R17mm | 120° | MIRROR ALU | EPISTAR OR EPILED |
| GREEN=520-530nm | 90-110lm/w | 45-48V | ||||||||
| BLUE=460-470nm | 20-30lm/w | 45-48V | HC | |||||||
| 20w | RED=620-630nm | 40-60lm/w | 600mA | 20-24V | EPISTAR OR EPILED | |||||
| GREEN=520-530nm | 90-110lm/w | 30-34V | ||||||||
| BLUE=460-470nm | 20-30lm/w | 30-34V | HC | |||||||
| 25w | RED=620-630nm | 40-60lm/w | 750mA | 20-24V | EPISTAR OR EPILED | |||||
| GREEN=520-530nm | 90-110lm/w | 30-34V | ||||||||
| BLUE=460-470nm | 20-30lm/w | 30-34V | HC | |||||||
| 30w | RED=620-630nm | 40-60lm/w | 900mA | 20-24V | EPISTAR OR EPILED | |||||
| GREEN=520-530nm | 90-110lm/w | 30-34V | ||||||||
| BLUE=460-470nm | 20-30lm/w | 30-34V | HC |
Note:
A.PRICE IS WITHOUT VAT.
B.EX-WORK QUOTE BASE,SHIPPING COST IS NOT INCLUDED.
C.WARRANTY IS 3 YRS.
D.PREPAID IS REQUIRED ONCE ORDER CONFIRMED,TT BALANCE ONCE READY TO SHIPPING.
E.PRODUCTION CYCLE IS 7-10 WORK DAYS.
F.OEM & ODM IS ACCEPTABLE.
Product Details
Product application
