UV LED Array series
UV LED R&D,Manufacture is one of important business structure in Learnew.Since 2013,Learnew first time present “Inorganic encapsulation” in high power UVA package,Core technical is we manage the most efficiency output and thermal resistance design.Even in 300-600W,Learnew UV series give best performance in lifetime and continual stable output.
Learnew UV(UVA & UVC) 1-600W series for different UV application,such as offset printer,exposure application,large-scale inkjet printer,3D printer,Printing & Curing application,Sterillization etc.Learnew standard design UVA(360-410nm) & UVC(260-280nm) for your pleasure need.


Product feature
  • ◪   Inorganic encapsulation

  • ◪   Lowest thermal resistance design

  • ◪   High efficiency output

  • ◪   High optical intensity design

  • ◪   Narrow & single peak wavelength design

  • ◪   Pure color output



Product parameters


UV-ALN-CVS35UV-P120
POWER192-300W
Dominant Wavelength365nm385nm395nm
Optical Power95000-110000mW120000-140000mW125000-150000mW
IF6000-8400mA
(Test=8400mA)
VF34-38V

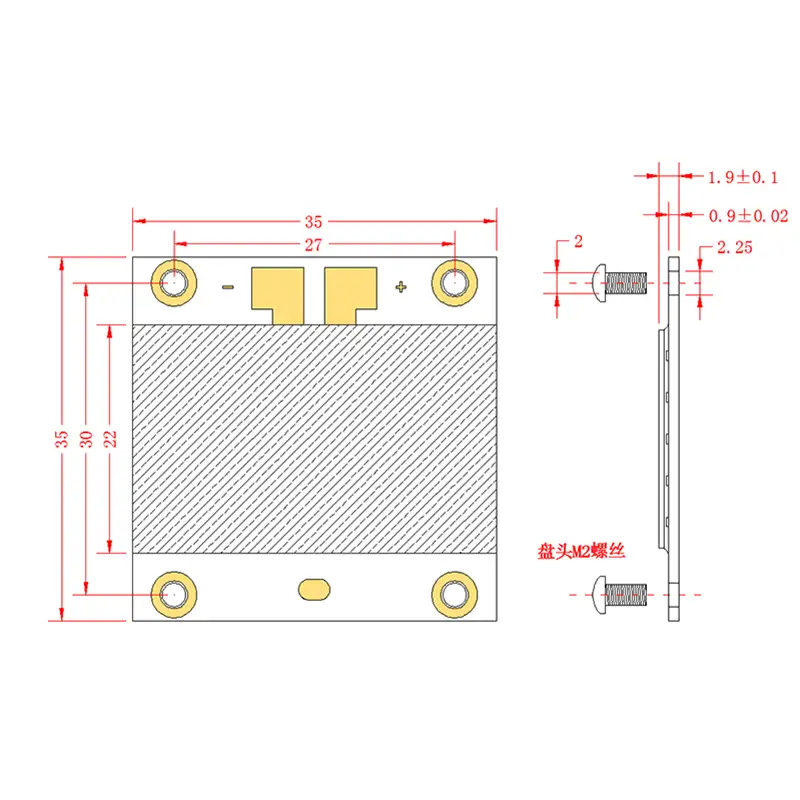

WHOLE SIZE35*35MM
Lighting Area22*35MM
VIEW ANGLE120°
LENSQUARTZ GLASS LENS
SUBSTRATEALN Coppering
CHIPSVERTICAL EPISTAR
(LG or HPO)
Learnew smd led chip inquire now bulk production 12

Note:
      A.PRICE IS WITHOUT VAT, AND KPCS=1000PCS.
      B.EX-WORK QUOTE BASE,SHIPPING COST IS NOT INCLUDED.
      C.WARRANTY IS 2 YRS.
      D.PREPAID IS REQUIRED ONCE ORDER CONFIRMED,TT BALANCE ONCE READY TO SHIPPING.
      E.PRODUCTION CYCLE IS 7-10 WORK DAYS.
      F.OEM & ODM IS ACCEPTABLE.
