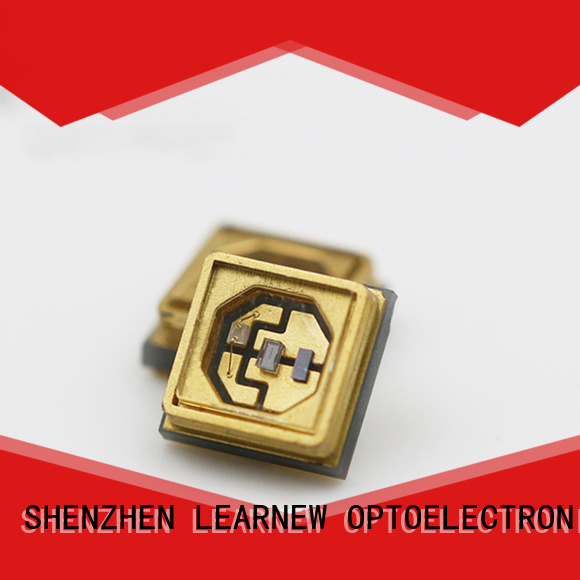

Learnew supplier bulk production
Product parameters

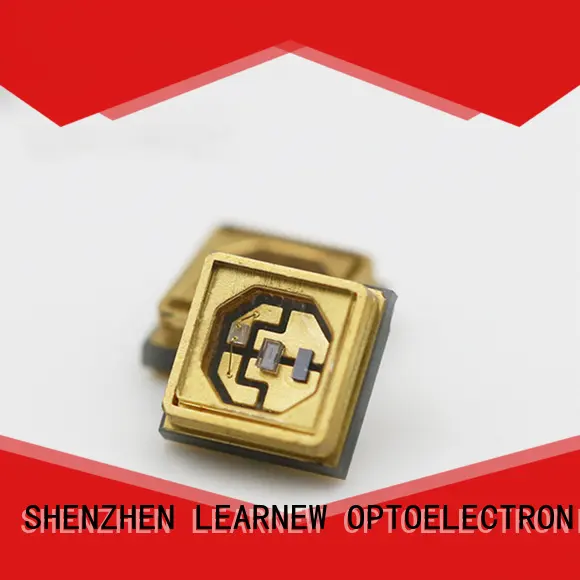

| PART NUMBER | LN-SMD3535UVAC-P0.5 |
| Dominant Wavelength | 265-285nm(Sterilization)/395-405nm(Assist) |
| OPTICAL POWER | 4-6mW/20-40MW |
| IF | 40mA(max=60mA) |
| VF | 6-8V/3.0-3.6V |
| WHOLE SIZE | 3.5*3.5mm |
| LENS | QUARTZ GLASS LENS |
| VIEW ANGLE | 120DEG |
| SUBSTRATE | ALN COPPERING |
| JUNCTION TEMPERATURE | 105-115C |
Design Advantage：
1,Quartz glass package
2,High radiant flux
3,Narrow Wavelength
4,Inorganic & Nitrogen package
5,Low thermal resistance
Application：
ICU Hospital，Air purifier，Water purifier，Washing machines Sterilization；UV Light,UV Box,UV Bags;UV LED Sterilizer...
