Company Advantages1. The whole production process of Learnew led light chips relies on our advanced production technology. Due to its easy processing, it's convenient and profitable for the application vendors
2. Over the years, this product is in high demands among the customers across the country. It is free of optical radiation and harmless to users
3. This product guarantees stable performance and long service life. It can produce a large number of lumens consuming less energy
4. Product quality has passed a number of international certification. Its CRI can be effectively improved by changing the combination of chips

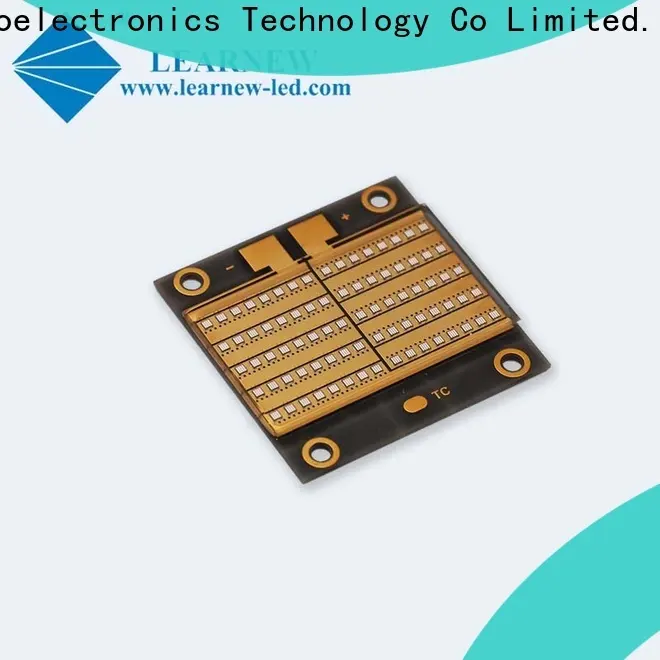

UV LED Array series
UV LED R&D,Manufacture is one of important business structure in Learnew.Since 2013,Learnew first time present “Inorganic encapsulation” in high power UVA package,Core technical is we manage the most efficiency output and thermal resistance design.Even in 300-600W,Learnew UV series give best performance in lifetime and continual stable output.
Learnew UV(UVA & UVC) 1-600W series for different UV application,such as offset printer,exposure application,large-scale inkjet printer,3D printer,Printing & Curing application,Sterillization etc.Learnew standard design UVA(360-410nm) & UVC(260-280nm) for your pleasure need.
Product feature
◪ Inorganic encapsulation
◪ Lowest thermal resistance design
◪ High efficiency output
◪ High optical intensity design
◪ Narrow & single peak wavelength design
◪ Pure color output
| UV-A | LN-CVS35UV-P120 |
| POWER | 192-300W |
| Dominant Wavelength | 365nm | 385nm | 395nm |
| Optical Power | 95000-110000mW | 120000-140000mW | 125000-150000mW |
| IF | 6000-8400mA
(Test=8400mA) |
| VF | 34-38V |
| WHOLE SIZE | 35*35MM |
| Lighting Area | 22*35MM |
| VIEW ANGLE | 120° |
| LENS | QUARTZ GLASS LENS |
| SUBSTRATE | ALN Coppering |
| CHIPS | VERTICAL EPISTAR
(LG or HPO) |
Note:
A.PRICE IS WITHOUT VAT, AND KPCS=1000PCS.
B.EX-WORK QUOTE BASE,SHIPPING COST IS NOT INCLUDED.
C.WARRANTY IS 2 YRS.
D.PREPAID IS REQUIRED ONCE ORDER CONFIRMED,TT BALANCE ONCE READY TO SHIPPING.
E.PRODUCTION CYCLE IS 7-10 WORK DAYS.
F.OEM & ODM IS ACCEPTABLE.
Company Features1. SHENZHEN LEARNEW OPTOELECTRONICS TECHNOLOGY CO LIMITED. have long histories and strong strength in led light chips development. SHENZHEN LEARNEW OPTOELECTRONICS TECHNOLOGY CO LIMITED. has a first-class R&D group, efficient sales system, and ideal after-sales service.
2. The coordinated development of technology development and research will ensure the quality of
led chips types .
3. Learnew earnestly introduces the high-tech machines to produce 3w uv led. Customer-orientation is our business principle. By deepening communication, we will work hard to assist customers to design, develop, and manufacture the accurate products they need.
