red 10w led cob chip at discount high power light Learnew
Trade Terms:
EXW,FOB,CFR,CIF
Payment Terms:
T/T, Paypal,Western Union & AliPay.
Production cycle:
7-12 working days standard, mass or customized order is depended.
MOQ:
1000PCS and samples' order for any pieces is available.
Service:
OEM&ODM
Discount policy:
Qty>=5000PCS
Package:
Anti-static plate,foam and bags.
Design Advantage:
Powerful R&D
Enterprise Strength
- Learnew Optoelectronics Technology always focuses on managing the business with attention and providing sincere service. We are dedicated to providing high-quality products and excellent services.
Application Scope
The uv led chip produced by Learnew Optoelectronics Technology is of high quality and is widely used in the Manufacturing Electrical Equipment & Supplies Optoelectronic Displays industry.Guided by the actual needs of customers, Learnew Optoelectronics Technology provides comprehensive, perfect and quality solutions based on the benefit of customers.
1. The production of Learnew 10w led cob chip is strictly controlled and inspected before going into the next stage.
2. The product has a thick and strong structure. Its heart board is made of natural log and its surface layer is made of the natural thick veneer. That guarantees the whole stable and robust structure.
3. All the products have passed the 10w led cob chip certification and high power cob led inspection.
Product parameters

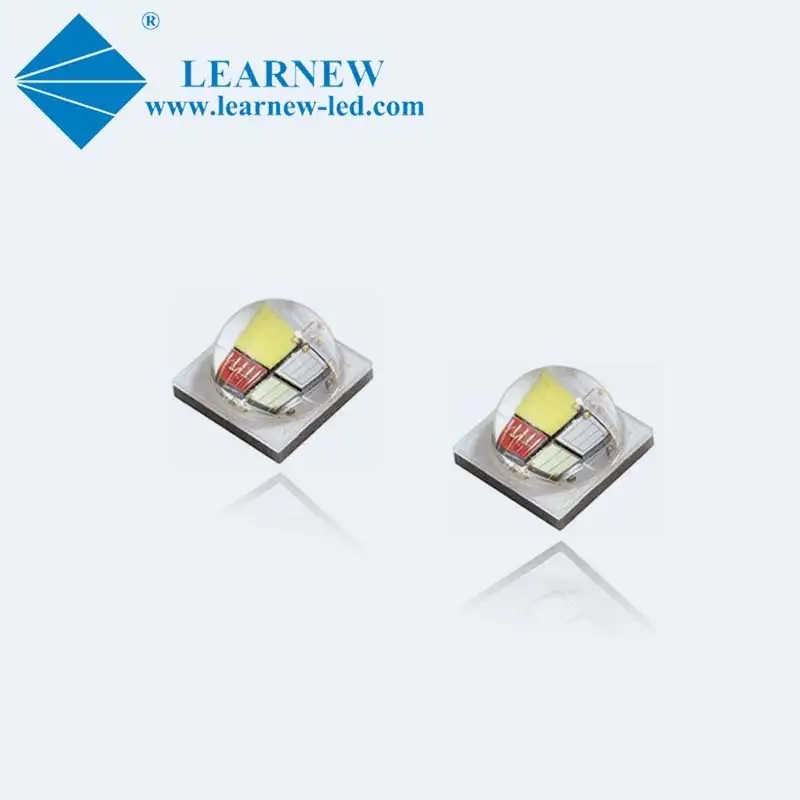

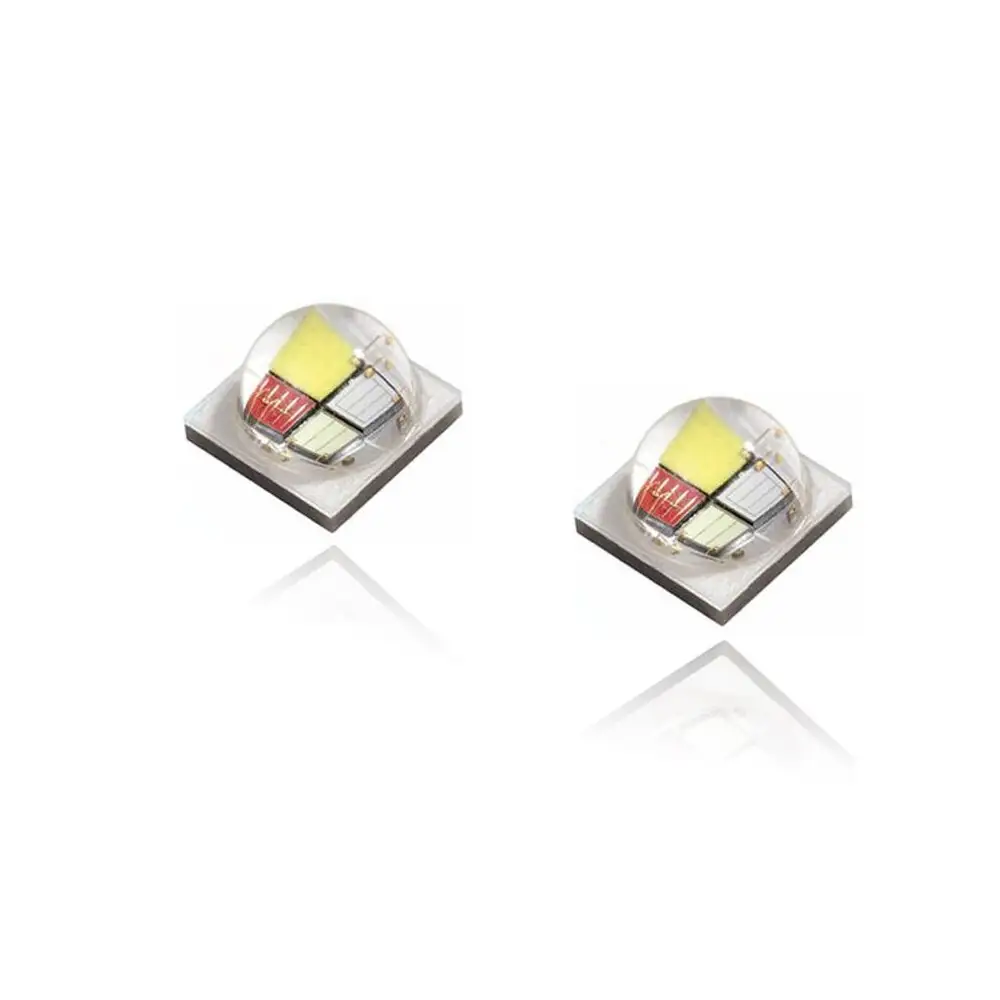

| PART NUMBER | LN-SMD3535RGBW-P4-EA |
| POWER | 4W |
| CCT | R=620-630nm G=520-530nm B=460-470nm W=3000K/6000K |
| LUMINUOUS EFF | R=30-40lm G=60-70lm B=20-30lm W=70-90lm |
| CHIPS | Epiled & Flip CHIP |
| IF | 350mA |
| VF | R=2.0-2.4V G=3.0-3.4V B=3.0-3.4V W=3.0-3.4V |
| CIRCUIT | 1PCS in series 4PCS in parallel |
| WHOLE SIZE | 3.5*3.5MM |
| LES | R3MM |
| VIEW ANGLE | 120° |
| CRI | Non |
| SUBSTRATE | Ceramic |
Note:
A.PRICE IS WITHOUT VAT.
B.EX-WORK QUOTE BASE,SHIPPING COST IS NOT INCLUDED.
C.WARRANTY IS 3 YRS.
D.PREPAID IS REQUIRED ONCE ORDER CONFIRMED,TT BALANCE ONCE READY TO SHIPPING.
E.PRODUCTION CYCLE IS 7-10 WORK DAYS.
F.OEM & ODM IS ACCEPTABLE.
Product Details
Product application
Company Features
1. HENZHEN LEARNEW OPTOELECTRONICS TECHNOLOGY CO LIMITED. is well positioned to serve as an international high power led chip manufacturer and exporter since its inception.
2. HENZHEN LEARNEW OPTOELECTRONICS TECHNOLOGY CO LIMITED. adopts high technology to greatly improve quality and output of brightest led chip .
3. Learnew is confident to provide you the most comprehensive services and products of high quality. Ask! We will strive to enter the global market and become a famous 10w led cob chip manufacturing brand. Ask!
high power 1-3W LED Chip warm white /cool white 3000k 10000k
Product Description
3v 6v 9v 110-130lm 1w 3030 EMC SMD high power led
| Part No. | Color | Voltage | Current | Intensity | Emitting angle |
| FD-3030W-3v | White Cool white Warm white | 3v | 350mA | 110-130lm | 120degree |
| FD-3030W-6v | 6v | 150mA | 110-130lm | 120degree | |
| FD-3030W-9v | 9v | 100mA | 110-130lm | 120degree | |
| FD-3030W-18v | 18v | 60mA | 110-130lm | 120degree | |
| FD-3030W-24v | 24v | 40mA | 110-130lm | 120degree | |
| FD-3030W-27v | 27v | 30mA | 110-130lm | 120degree | |
| FD-3030R-3V | Red 620-625nm | 3v | 350mA | 40lm | 120degree |
| FD-3030G-3V | Green 520-525nm | 3v | 350mA | 100lm | 120degree |
| FD-3030Y-3V | Yellow 588-595nm | 3v | 350mA | 40lm | 120degree |
| FD-3030B-3V | Blue 460-470nm | 3v | 350mA | 25lm | 120degree |
| FD-3030UV-3V | UV 400-410nm | 3v | 350mA | 10lm | 120degree |
| Part No. | Color | Wavelength | Intensity | Emitting angle | Voltage |
| FD-3535W-1 | White | Full range from 2500K up to 20000K | 100-120lm | 125degree | 3.0-3.4v |
| FD-3535R-1 | Red | Full range from 620nm up to 700nm | 50lm | 125degree | 2.0-2.4v |
| FD-3535Y-1 | Yellow | Full range from 580 to 610nm | 50lm | 125degree | 2.0-2.4v |
| FD-3535G-1 | Green | Full range from 490 to 530nm | 80-90lm | 125degree | 3.0-3.4v |
| FD-3535B-1 | Blue | Full range from 440nm to 470nm | 30lm | 125degree | 3.0-3.4v |
| FD-3535UV-1 | UV | Full range from 265nm up to 440nm | / | 125degree | 3.0-3.4v |
| FD-3535IR-1 | IR | Full range from 730nm up to 990nm | / | 125degree | 3.4-3.6v |
| Part No. | Color | Wavelength | Intensity | Emitting angle | Voltage |
| FD-3535W-3 | White | Full range from 2500K up to 20000K | 220LM | 125degree | 3.0-3.4v |
| FD-3535R-3 | Red | Full range from 620nm up to 700nm | 80LM | 125degree | 2.0-2.4v |
| FD-3535Y-3 | Yellow | Full range from 580 to 610nm | 80LM | 125degree | 2.0-2.4v |
| FD-3535G-3 | Green | Full range from 490 to 530nm | 180LM | 125degree | 3.0-3.4v |
| FD-3535B-3 | Blue | Full range from 440nm to 470nm | 60LM | 125degree | 3.0-3.4v |
| FD-3535UV-3 | UV | Full range from 265nm up to 440nm | / | 125degree | 3.0-3.4v |
| FD-3535IR-3 | IR | Full range from 730nm up to 990nm | / | 125degree | 3.4-3.6v |
| 1w high power led | ||||
| White color | ||||
| Part No. | Intensity (lm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-1W90-Y | 80-90lm | 350mA | 3.0-3.6V | 60deg 90deg 120deg 140deg |
| FD-1W110-Y | 100-110lm | 350mA | 3.0-3.6V | |
| FD-1W120-Y | 110-120lm | 350mA | 3.0-3.6V | |
| FD-1W130-Y | 130-140lm | 350mA | 3.0-3.6V | |
| Blue color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-1B-Y | 460-470nm | 350mA | 3.0-3.6V | 60deg 90deg 120deg 140deg |
| FD-12B-Y | 440-450nm | 350mA | 3.0-3.6V | |
| FD-13B-Y | 450-455nm | 350mA | 3.0-3.6V | |
| Green color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-1G-Y | 520-525nm | 350mA | 3.0-3.6V | 60deg 90deg 120deg 140deg |
| FD-12G-Y | 500-505nm | 350mA | 3.0-3.6V | |
| FD-13G-Y | 490-495nm | 350mA | 3.0-3.6V | |
| FD-14G-Y | 495-500nm | 350mA | 3.0-3.6V | |
| FD-15G-Y | 515-520nm | 350mA | 3.0-3.6V | |
| Yellow color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-1Y-Y | 588-595nm | 350mA | 1.9-2.3V | 60deg 90deg 120deg 140deg |
| Amber color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-1A-Y | 600-610nm | 350mA | 1.9-2.3V | 60deg 90deg 120deg 140deg |
| Red color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-1R-Y | 620-630nm | 350mA | 1.9-2.3V | 60deg 90deg 120deg 140deg |
| FD-12R-Y | 640-650nm | 350mA | 1.9-2.3V | |
| FD-13R-Y | 660nm | 350mA | 1.9-2.3V | |
| FD-132R-Y | 660-670nm | 350mA | 1.9-2.3V | |
| FD-142R-Y | 670-680nm | 350mA | 1.9-2.3V | |
| FD-14R-Y | 680-690nm | 350mA | 1.9-2.3V | |
| FD-15R-Y | 700nm | 350mA | 1.9-2.3V | |
| FD-16R-Y | 730nm | 350mA | 1.9-2.3V | |
| FD-17R-Y | 760-770nm | 350mA | 1.9-2.3V | |
| UV color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-1UV-Y | 400-410nm | 350mA | 3.0-3.6V | 60deg 90deg 120deg 140deg |
| FD-12UV-Y | 390-400nm | 350mA | 3.0-3.6V | |
| FD-13UV-Y | 410-420nm | 350mA | 3.0-3.6V | |
| FD-14UV-Y | 430-440nm | 350mA | 3.0-3.6V | |
| FD-15UV-Y | 365nm | 350mA | 3.0-3.6V | |
| FD-16IV-Y | 380-385nm | 350mA | 3.0-3.6V | |
| FD-17UV-Y | 370-375nm | 350mA | 3.0-3.6V | |
| FD-18UV-Y | 375-380nm | 350mA | 3.0-3.6V | |
| Infrared ( IR ) color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-1IR-Y | 940nm | 350mA | 1.6-1.9V | 60deg 90deg 120deg 140deg |
| FD-12IR-Y | 850nm | 350mA | 1.6-1.9V | |
| FD-13IR-Y | 880nm | 350mA | 1.6-1.9V | |
| FD-14R-Y | 770-780nm | 350mA | 1.5-2.0V | |
| FD-15IR-Y | 800-810nm | 350mA | 1.3-1.7V | |
| FD-16IR-Y | 810-820nm | 350mA | 1.3-1.7V | |
| FD-17R-Y | 870nm | 350mA | 1.3-1.7V | |
| FD-18IR-Y | 890nm | 350mA | 1.3-1.7V | |
| FD-19IR-Y | 900-910nm | 350mA | 1.3-1.7V | |
| FD-1I0R-Y | 970-980nm | 350mA | 1.6-1.9V | |
| FD-111IR-Y | 980-990nm | 350mA | 1.1-1.3V | |
| FD-112IR-Y | 1000-1050nm | 350mA | 1.0-1.2V | |
| 3w high power led | ||||
| White color | ||||
| Part No. | Intensity (lm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-3W220-Y | 200-220lm | 700mA | 3.0-3.6V | 60deg 90deg 120deg 140deg |
| Blue color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-3B-Y | 460-470nm | 700mA | 3.0-3.6V | 60deg 90deg 120deg 140deg |
| FD-32B-Y | 440-450nm | 700mA | 3.0-3.6V | |
| FD-33B-Y | 450-455nm | 700mA | 3.0-3.6V | |
| Green color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-3G-Y | 520-525nm | 700mA | 3.0-3.6V | 60deg 90deg 120deg 140deg |
| FD-32G-Y | 500-505nm | 700mA | 3.0-3.6V | |
| FD-33G-Y | 490-495nm | 700mA | 3.0-3.6V | |
| FD-34G-Y | 495-500nm | 700mA | 3.0-3.6V | |
| FD-35G-Y | 515-520nm | 700mA | 3.0-3.6V | |
| Yellow color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-3Y-Y | 588-595nm | 700mA | 1.9-2.3V | 60deg 90deg 120deg 140deg |
| Amber color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-3A-Y | 600-610nm | 700mA | 1.9-2.3V | 60deg 90deg 120deg 140deg |
| Red color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-3R-Y | 620-630nm | 700mA | 1.9-2.3V | 60deg 90deg 120deg 140deg |
| FD-32R-Y | 640-650nm | 700mA | 1.9-2.3V | |
| FD-33R-Y | 660nm | 700mA | 1.9-2.3V | |
| FD-332R-Y | 660-670nm | 700mA | 1.9-2.3V | |
| FD-342R-Y | 670-680nm | 700mA | 1.9-2.3V | |
| FD-34R-Y | 680-690nm | 700mA | 1.9-2.3V | |
| FD-35R-Y | 700nm | 700mA | 1.9-2.3V | |
| FD-36R-Y | 730nm | 700mA | 1.9-2.3V | |
| FD-37R-Y | 760-770nm | 700mA | 1.9-2.3V | |
| UV color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-3UV-Y | 400-410nm | 700mA | Voltage (v) | 60deg 90deg 120deg 140deg |
| FD-32UV-Y | 390-400nm | 700mA | 1.9-2.3V | |
| FD-33UV-Y | 410-420nm | 700mA | 1.9-2.3V | |
| FD-34UV-Y | 430-440nm | 700mA | 1.9-2.3V | |
| FD-35UV-Y | 365nm | 700mA | 1.9-2.3V | |
| FD-36UV-Y | 380-385nm | 700mA | 1.9-2.3V | |
| FD-37UV-Y | 370-375nm | 700mA | 1.9-2.3V | |
| FD-38UV-Y | 375-380nm | 700mA | 1.9-2.3V | |
| Infrared ( IR ) color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-3IR-Y | 940nm | 700mA | 1.6-1.9V | 60deg 90deg 120deg 140deg |
| FD-32IR-Y | 850nm | 700mA | 1.6-1.9V | |
| FD-33IR-Y | 880nm | 700mA | 1.6-1.9V | |
| FD-34R-Y | 770-780nm | 700mA | 1.5-2.0V | |
| FD-35IR-Y | 800-810nm | 700mA | 1.3-1.7V | |
| FD-36IR-Y | 810-820nm | 700mA | 1.3-1.7V | |
| FD-37R-Y | 870nm | 700mA | 1.3-1.7V | |
| FD-38IR-Y | 890nm | 700mA | 1.3-1.7V | |
| FD-39IR-Y | 900-910nm | 700mA | 1.3-1.7V | |
| FD-3I0R-Y | 970-980nm | 700mA | 1.6-1.9V | |
| FD-311IR-Y | 980-990nm | 700mA | 1.1-1.3V | |
| FD-312IR-Y | 1000-1050nm | 700mA | 1.0-1.2V | |
| 5w high power led A type | ||||
| Part No. | Intensity (lm) Wavelength(nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-5W500-Y | White | 700mA | 6--7v | 60deg 90deg 120deg 140deg |
| FD-5R-Y | Red | 700mA | 4-5V | |
| FD-5B-Y | Blue | 700mA | 6-7v | |
| FD-5G-Y | Green | 700mA | 6-7v | |
| FD-5A-Y | Amber | 700mA | 4-5v | |
| FD-5Y-Y | Yellow | 700mA | 4-5v | |
| FD-5IR-Y | IR 940nm | 1400mA | 1.6-1.9v | |
| FD-52IR-Y | IR 850nm | 1400mA | 1.6-1.9v | |
| 10W high power led A type | ||||
| White color | ||||
| Part No. | Intensity (lm) Wavelength(nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-10W1100-A | White | 1000mA | 10-12V | 160deg |
| FD-10R-A | Red | 1000mA | 6-7V | |
| FD-10B-A | Blue | 1000mA | 10-12V | |
| FD-10G-A | Green | 1000mA | 10-12V | |
| FD-10A-A | Amber | 1000mA | 6-7V | |
| FD-10Y-A | Yellow | 1000mA | 6-7V | |
| 12W high power led | ||
| White color | ||
| Part No. | Intensity (lm) | Emitting angle (Degree) |
| FD-12W1320 | 1320lm | 160deg |
| FD-12W1200 | 1200lm | |
| FD-12W960 | 960lm | |
| 15W high power led | ||
| White color | ||
| Part No. | Intensity (lm) | Emitting angle (Degree) |
| FD-15W1650 | 1650lm | 160deg |
| FD-15W1500 | 1500lm | |
| FD-15W1200 | 1200lm | |
{{item.score}} Stars
{{item.pre}}%
{{item.nickname ? (item.nickname.slice(0, 2) + '*****') : item.source === 1 ? 'mall buyer' : '--'}}
{{item.comment_time}}
Review in the {{item.country}}
{{itemAttr.params_key}}: {{itemAttr.params_value}}
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
you might like
no data
Products
contact us
Telephone：+86-755-29084995
& +86-755-23408535
cell phone：+86 158-1860-2704
E-Mail：devin@learnew-led.com
Office address: 3rd Floor, Building A, No. 2, Jiazitang Second Industrial Zone, Fenghuang Street, Guangming District, Shenzhen (518-107)
Better touch, better business.
Get in touch to learn about new salespeople
