Enterprise Strength
-
Adhering to the service concept to be customer-oriented, Learnew Optoelectronics Technology wholeheartedly provides customers with high-quality products and professional services.
Product Details
With a focus on quality, Learnew Optoelectronics Technology pays great attention to the details of
led cob chip.Learnew Optoelectronics Technology has the ability to meet different needs. led cob chip is available in multiple types and specifications. The quality is reliable and the price is reasonable.
Company Advantages1. Designed by our professional engineers, our rgb uv led are more unique than other products in its uv led 385nm 395nm.
2. Its certified quality is a highlight. It is produced following the rules of the international quality certification system and has passed related quality certification.
3. Excellent customer service is formed in HENZHEN LEARNEW OPTOELECTRONICS TECHNOLOGY CO LIMITED..

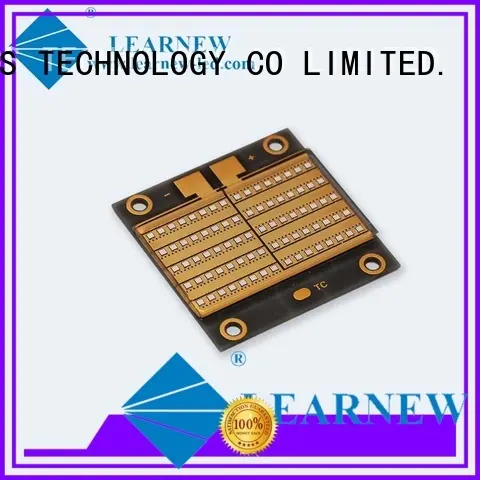

UV LED Array series
UV LED R&D,Manufacture is one of important business structure in Learnew.Since 2013,Learnew first time present “Inorganic encapsulation” in high power UVA package,Core technical is we manage the most efficiency output and thermal resistance design.Even in 300-600W,Learnew UV series give best performance in lifetime and continual stable output.
Learnew UV(UVA & UVC) 1-600W series for different UV application,such as offset printer,exposure application,large-scale inkjet printer,3D printer,Printing & Curing application,Sterillization etc.Learnew standard design UVA(360-410nm) & UVC(260-280nm) for your pleasure need.
Product feature
◪ Inorganic encapsulation
◪ Lowest thermal resistance design
◪ High efficiency output
◪ High optical intensity design
◪ Narrow & single peak wavelength design
◪ Pure color output
| UV-A | LN-CVS35UV-P120 |
| POWER | 192-300W |
| Dominant Wavelength | 365nm | 385nm | 395nm |
| Optical Power | 95000-110000mW | 120000-140000mW | 125000-150000mW |
| IF | 6000-8400mA
(Test=8400mA) |
| VF | 34-38V |
| WHOLE SIZE | 35*35MM |
| Lighting Area | 22*35MM |
| VIEW ANGLE | 120° |
| LENS | QUARTZ GLASS LENS |
| SUBSTRATE | ALN Coppering |
| CHIPS | VERTICAL EPISTAR
(LG or HPO) |
Note:
A.PRICE IS WITHOUT VAT, AND KPCS=1000PCS.
B.EX-WORK QUOTE BASE,SHIPPING COST IS NOT INCLUDED.
C.WARRANTY IS 2 YRS.
D.PREPAID IS REQUIRED ONCE ORDER CONFIRMED,TT BALANCE ONCE READY TO SHIPPING.
E.PRODUCTION CYCLE IS 7-10 WORK DAYS.
F.OEM & ODM IS ACCEPTABLE.
Company Features1. Learnew is booming in this rgb uv led field.
2. HENZHEN LEARNEW OPTOELECTRONICS TECHNOLOGY CO LIMITED. fully makes use of its high technology to the production of led cob 200w .
3. HENZHEN LEARNEW OPTOELECTRONICS TECHNOLOGY CO LIMITED. always put the needs of customers in the first place. Contact us! HENZHEN LEARNEW OPTOELECTRONICS TECHNOLOGY CO LIMITED. aims to be world-class uv cob led company. Contact us!
