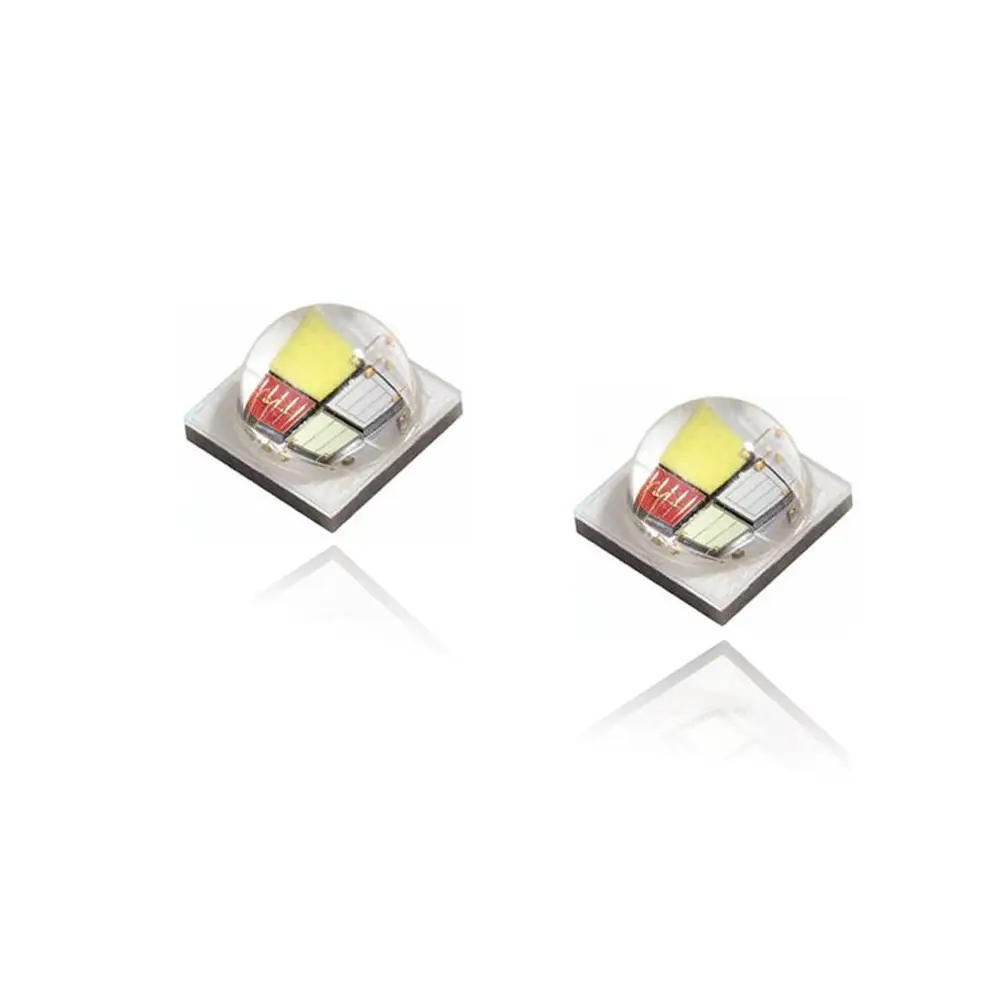

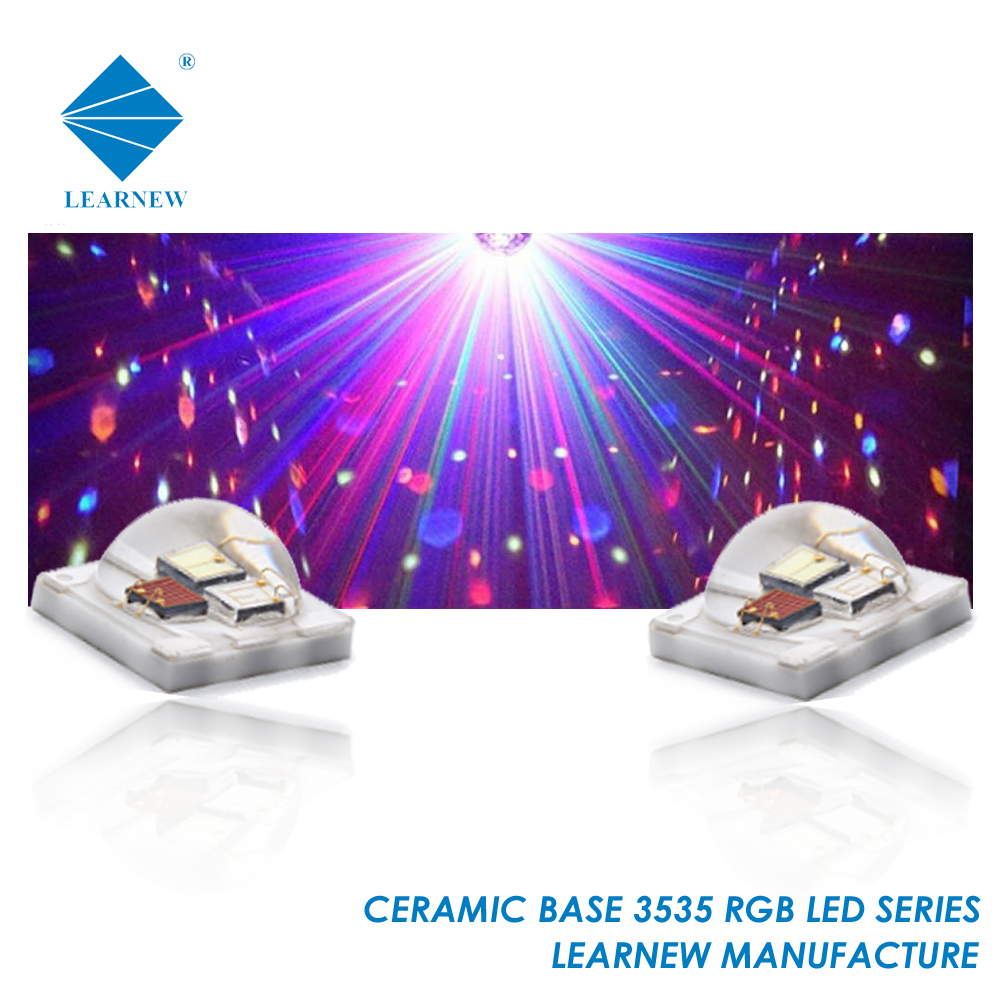

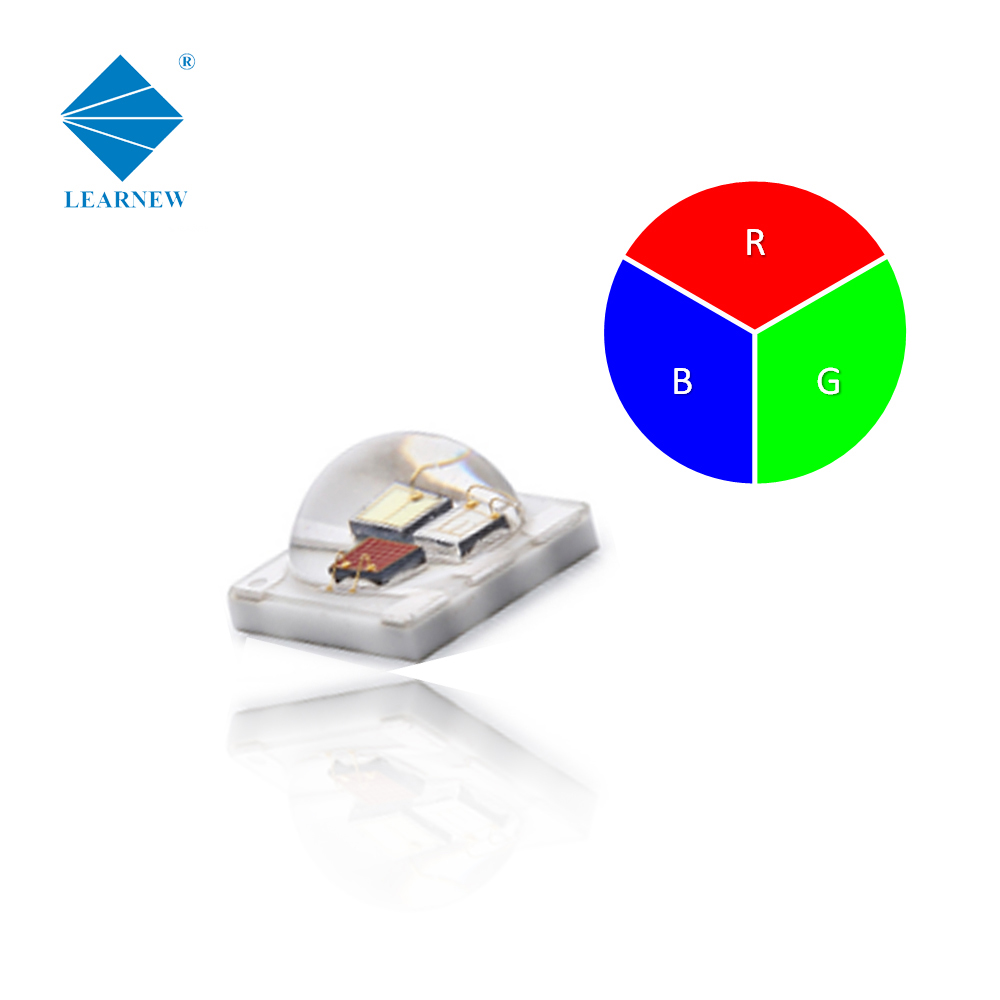

SMD3535 SMD LED RGB RGBW 2W 3W 4W SANAN CHIP 120DEG SMD LED chips for LED stage light

Brand Name:

LEARNEW OPTO

Part Number:

3535 SERIES

VF:

R=2.0-2.4V G=3.0-3.4V B=3.0-3.4V W=3.0-3.4V

Trade Terms:

EXW,FOB,CFR,CIF

Payment Terms:

T/T,Western Union,Paypal

Production cycle:

10-40 working days standard,mass or customized order is depended.

MOQ:

100-10000PCS

Service:

OEM&ODM

Discount policy:

>=10000PCS

Package:

Anti-static plate,foam and bags.

Inquiry

Write a Review

Certification

CE,ROHS

OEM & ODM

OEM ODM

Product parameters

SMD3535 SMD LED RGB RGBW 2W 3W 4W SANAN CHIP 120DEG SMD LED chips for LED stage light 6

PART NUMBER	LN-SMD3535RGBW-P4-EA
POWER	4W
CCT	R=620-630nm G=520-530nm B=460-470nm W=3000K/6000K
LUMINUOUS EFF	R=30-40lm G=60-70lm B=20-30lm W=70-90lm
CHIPS	Epiled & Flip CHIP
IF	350mA
VF	R=2.0-2.4V G=3.0-3.4V B=3.0-3.4V W=3.0-3.4V
CIRCUIT	1PCS in series 4PCS in parallel
WHOLE SIZE	3.5*3.5MM
LES	R3MM
VIEW ANGLE	120°
CRI	Non
SUBSTRATE	Ceramic

Note:
A.PRICE IS WITHOUT VAT.
B.EX-WORK QUOTE BASE,SHIPPING COST IS NOT INCLUDED.
C.WARRANTY IS 3 YRS.
D.PREPAID IS REQUIRED ONCE ORDER CONFIRMED,TT BALANCE ONCE READY TO SHIPPING.
E.PRODUCTION CYCLE IS 7-10 WORK DAYS.
F.OEM & ODM IS ACCEPTABLE.
