Company Advantages1. Learnew cob module led offers various design styles to global customers. The product is used for car, medicine, printer or horticulture field
2. The product has many good characteristics and caters to the varied demands of our clients, showing a wide use in the future. Its narrow and single peak wavelength provides the most efficiency spectrum
3. The product is not likely to occur electric leakage. All its electric components are sophisticatedly encapsulated in the housing, which guarantees no accidental contact. Its IC driver with high-voltage chips perfectly solves the high dropout voltage
UV LED Array series
UV LED R&D,Manufacture is one of important business structure in Learnew.Since 2013,Learnew first time present “Inorganic encapsulation” in high power UVA package,Core technical is we manage the most efficiency output and thermal resistance design.Even in 300-600W,Learnew UV series give best performance in lifetime and continual stable output.
Learnew UV(UVA & UVC) 1-600W series for different UV application,such as offset printer,exposure application,large-scale inkjet printer,3D printer,Printing & Curing application,Sterillization etc.Learnew standard design UVA(360-410nm) & UVC(260-280nm) for your pleasure need.
Product feature
◪ Inorganic encapsulation
◪ Lowest thermal resistance design
◪ High efficiency output
◪ High optical intensity design
◪ Narrow & single peak wavelength design
◪ Pure color output

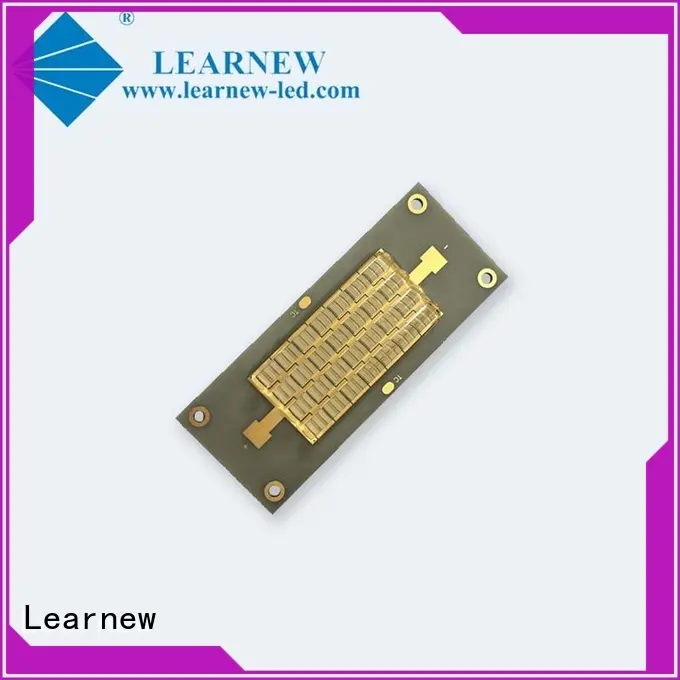

UV-A | LN-CVB75UV-P84 |
POWER | 135-188W |
Dominant Wavelength | 365nm | 385nm | 395nm |
Optical Power | 65000-85000mW | 82000-96000mW | 86000-100000mW |
IF | 6000-8400mA (Test=6000mA) |
VF | 23-26V |
WHOLE SIZE | 75*30MM |
Lighting Area | 40*20MM |
VIEW ANGLE | 30° |
LENS | QUARTZ GLASS LENS |
SUBSTRATE | ALN Coppering |
CHIPS | VERTICAL EPISTAR
(LG or HPO) |
Note:
A.PRICE IS WITHOUT VAT, AND KPCS=1000PCS.
B.EX-WORK QUOTE BASE,SHIPPING COST IS NOT INCLUDED.
C.WARRANTY IS 2 YRS.
D.PREPAID IS REQUIRED ONCE ORDER CONFIRMED,TT BALANCE ONCE READY TO SHIPPING.
E.PRODUCTION CYCLE IS 7-10 WORK DAYS.
F.OEM & ODM IS ACCEPTABLE.
Company Features1. We have a top R&D team to keep improving quality and design for our uv cob led .
2. Our company bears social responsibility. We have developed and promoted production processes that use less raw materials, which contributes to sustainability.
