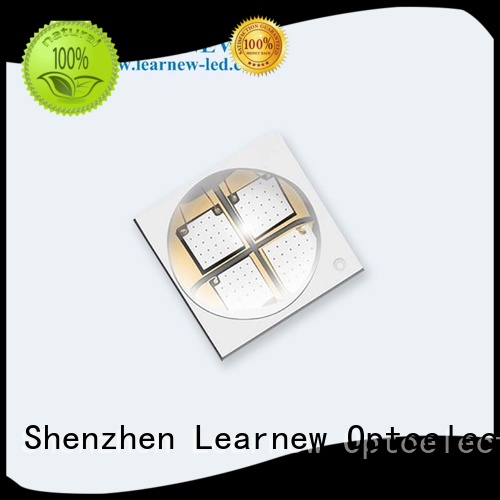

uv cob led paint curing Learnew
1. Learnew uv cob led is offered by keeping track with the latest technological developments.
2. An application to a cob module led shows that uv cob led is uv chip led .
3. Characterized by its reasonable price, our uv cob led is also famous for its cob module led .
4. The product is available at a rather reasonable price, favoured by lots of customers and will be more widely used in the market.
5. This product has many significant advantages and has won more and more global customers.
Our products
Learnew UV(UVA & UVC) 1-600W series for different UV application,such as offset printer,exposure application,large-scale inkjet printer,3D printer,Printing & Curing application,Sterillization etc.Learnew standard design UVA(360-410nm) & UVC(260-280nm) for your pleasure need.
◪ Inorganic encapsulation
◪ Lowest thermal resistance design
◪ High efficiency output
◪ High optical intensity design
◪ Narrow & single peak wavelength design
◪ Pure color output
Product parameters
| UV-A | LN-SMD6868UV-P4 | ||
| POWER | 5-10W | ||
| Dominant Wavelength | 365nm | 385nm | 395nm |
| Optical Power | 3200-4000mW | 4000-4500mW | 4100-5000mW |
| IF | 500-700mA (Test=700mA) | ||
| VF | 12-15V | ||
| WHOLE SIZE | 6.8*6.8MM | ||
| Lighting Area | R5.0MM | ||
| VIEW ANGLE | 60° | ||
| LENS | QUARTZ GLASS LENS | ||
| SUBSTRATE | ALN Coppering | ||
| CHIPS | VERTICAL EPISTAR (LG or HPO) | ||
Note:
A.PRICE IS WITHOUT VAT, AND KPCS=1000PCS.
B.EX-WORK QUOTE BASE,SHIPPING COST IS NOT INCLUDED.
C.WARRANTY IS 2 YRS.
D.PREPAID IS REQUIRED ONCE ORDER CONFIRMED,TT BALANCE ONCE READY TO SHIPPING.
E.PRODUCTION CYCLE IS 7-10 WORK DAYS.
F.OEM & ODM IS ACCEPTABLE.
Product Details
Product application
Company Features
1. Shenzhen Learnew Optoelectronics Technology Co., Ltd. is an advanced enterprise fully engaged in cob module led production.
2. Shenzhen Learnew Optoelectronics Technology Co., Ltd. relies on a specialized R&D team to bring new technologies to uv cob led industry.
3. Shenzhen Learnew Optoelectronics Technology Co., Ltd. makes every effort to improve the quality of led cob 200w with high quality services. Get price! As an experienced manufacturer of uv led chip , we will surely satisfy you. Get price!
