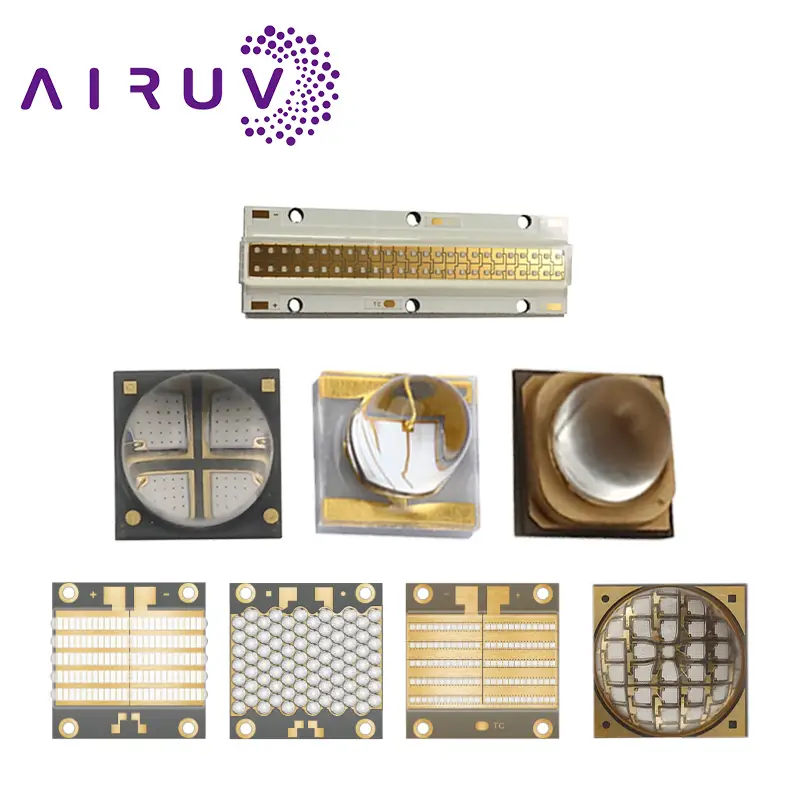

UVA LED Chips 365nm 385nm 395nm 3535 3838 6868 1616 UV LED For UV curing Offset printer

Brand Name:

LEARNEW OPTO

Part Number:

UV LED CHIP

VF:

3.4-48V

Trade Terms:

EXW,FOB,CFR,CIF

Payment Terms:

T/T,Western Union,Paypal

Production cycle:

10-40 working days standard,mass or customized order is depended.

MOQ:

100-10000PCS

Service:

OEM&ODM

Discount policy:

>=10000PCS

Package:

Anti-static plate,foam and bags.

Design Advantage:

1,Long life span 2,low thermal resistance 3,High effiency 40%-50% 4,Ingorganic encapsulation 5,High density and intensity 6,Screw free assemble for high power curing use 7,Multi wavelength 365nm/385nm/395nm/405nm/420nm in one design 8,Special view angle in 30DEG or 120DEG

Inquiry

Write a Review

Certification

CE,ROHS

OEM & ODM

OEM ODM

Product Parameters

Model	POWER	Dominant Wavelength	Optical Power	IF	VF	WHOLE SIZE	Lighting Area	VIEW ANGLE
LN-SMD3838UV-P1	3W	365nm 385nm 395nm	810-1020mW 1000-1200mW 1050-1250mW	700-1400mA	3.4-3.8V	3.8*3.8MM	R3.0MM	60°
LN-SMD3535UV-P1	3W	395nm 405nm	1050-1500mW	700mA	3.0-3.6V	3.5*3.5MM	R3.0MM	120°
LN-SMD6868UV-P4	10W	365nm 385nm 395nm	3200-4000mW 4000-4500mW 4100-5000mW	1500mA (Max=2A)	6.0-7.0V	6.8*6.8MM	R5.0MM	60°
LN-CVS16UV-P42	100W	365nm 385nm 395nm	33500-38000mW 40000-48000mW 42000-50000mW	2100mA (Max=3A)	48-54V	16*16MM	R15MM	60-90°
LN-CVB80UV-P50	125W	365nm 385nm 395nm	38000-44000mW 48000-56000mW 50000-58000mW	3500mA (Max=5A)	34-38V	80*25MM	80*10MM	120°
LN-CVS35UVH-P80(Hybrid version)	200W	395nm 50% 385nm 50%	82000-98000mW	5600mA (Max=8A)	34-38V	35*35MM	22*35MM	120°
LN-CVS35UV-P80	200W	365nm 385nm 395nm	64000-82000mW 80000-96000mW 85000-10000mW	5600mA (Max=8A)	34-38V	35*35MM	22*35MM	120°
LN-CVS35UVH-P120(Hybrid version)	300W	395nm 50% 385nm 50%	122000-145000mW	8400mA (Max=12A)	34-38V	35*35MM	22*35MM	120°
LN-CVS35UV-P120	300W	365nm 385nm 395nm	95000-110000mW 120000-140000mW 125000-150000mW	8400mA (Max=12A)	34-38V	35*35MM	22*35MM	120°
