    Product parameters

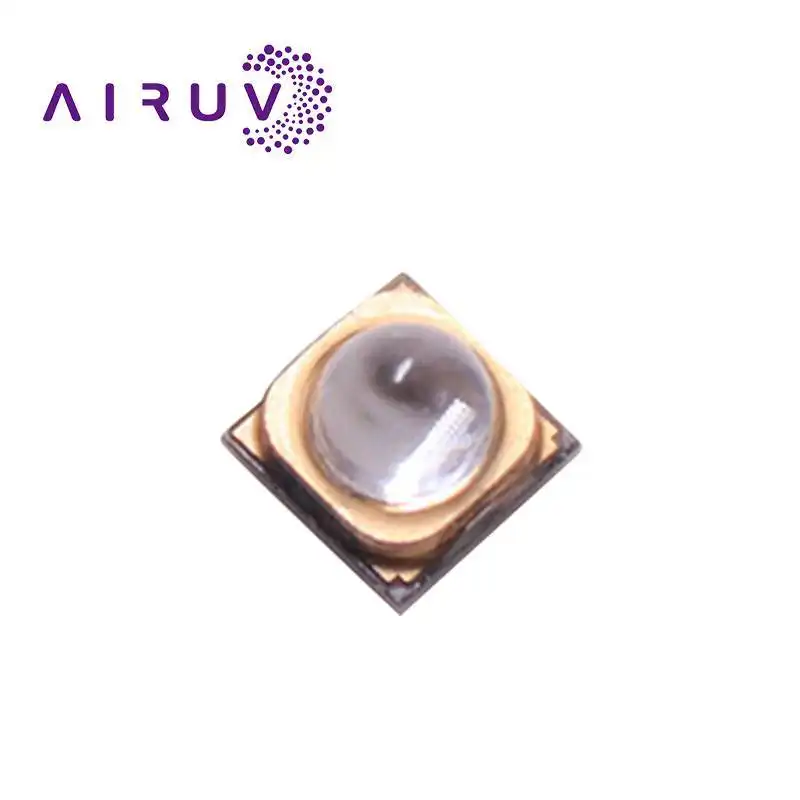

    340nm 3W Uv Led Chip High power LED 3w UV 350nm led SMD 3838 UVB LED For photometer 4



    • NAME
      3838 UVB LED CHIP
    • POWER
      3.0W
    • Dominant Wavelength
      340-350nm
    • Optical Power
      80-120mW
    • IF
      350mA(Max=700mA)
    • VF
      4-5V
    • WHOLE SIZE
      3.8*3.8MM
    • VIEW ANGLE
      120°
    • JUNCTION TEMPERATURE
      60-80C
    • LENS
      QUARTZ GLASS LENS
    Design Advantage

    1,Quartz glass package

    2,High radiant flux

    3,Narrow Wavelength

    4,Inorganic & Nitrogen package

    5,Low thermal resistance

    340nm 3W Uv Led Chip High power LED 3w UV 350nm led SMD 3838 UVB LED For photometer 5

    Application

    1.photometer

    2.Curing and Coating

    3.Medical treatment

    4.photosensitive



    340nm 3W Uv Led Chip High power LED 3w UV 350nm led SMD 3838 UVB LED For photometer 6
