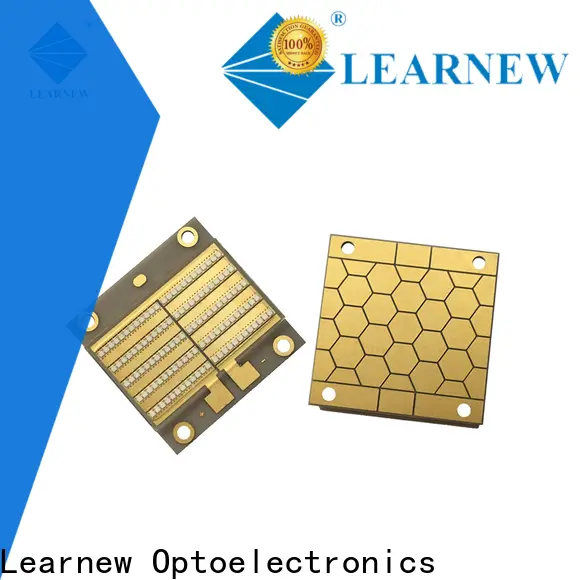

Learnew low-cost uv led chip manufacturer for led light

Brand Name:
LEARNEW OPTO
Part Number:
LN-CVS35UV-P120
Trade Terms:
EXW,FOB,CFR,CIF
Payment Terms:
T/T,Western Union,Paypal
Production cycle:
7-12 working days standard,mass or customized order is depended.
MOQ:
10
Service:
OEM&ODM
Discount policy:
>=20000PCS
Package:
Anti-static plate,foam and bags.
Design Advantage:
1,Long life span 2,low thermal resistance 3,High effiency 40%-50% 4,Ingorganic encapsulation 5,High density and intensity 6,Screw free assemble for high power curing use 7,Multi wavelength 365nm/385nm/395nm/405nm/420nm in one design 8,Special view angle in 30DEG or 120DEG
Inquiry
Certification
CE,ROHS,KC,UL
OEM & ODM
YES
Company Advantages
1. The design of Learnew involves several kinds of aspects. They include safety, reliability, utility, manufacturability, life cycle, and maintenance. It is free of any light spot
2. The product has been continuously improved the differentiated competitive advantages. Its fully-automatic production process guarantees its high-precision and consistency
3. The product features an effective and thorough cleaning effect. It is created to fit flexibility to curved corners and the hard to reach places. Its transmittance of light is highly recognized
4. This product is able to cover a large area. New CAD technology and advanced manufacturing techniques have brought down costs, making this possible on a larger scale. The product has the advantage of high optical intensity
5. The product has the advantage of stacking flexibility. It is made up of single panels suspended from the headrail, and the panels may be stacked at the ends of the partitions or remotely in the appropriate stacking area. It can produce a large number of lumens consuming less energy

Product parameters

PART NUMBERLN-CVS35UV-P120
Dominant Wavelength

365nm/385nm/395nm

OPTICAL POWER95000-110000mW;120000-140000mW;125000-150000mW
IF

8400mA(Max=12A)

VF34-38V
Circuit10S12P
WHOLE SIZE3.5*3.5MM
LENSQUARTZ GLASS LENS
VIEW ANGLE120DEG
Lighting Area22*35MM
JUNCTION TEMPERATURE105-115C
SUBSTRATEALN Coppering
CHIPS

VERTICAL(LG or HPO)

AppilcationLED plant Growing Market;UV curing,Inkjet curing;Photosensitive

Learnew low-cost uv led chip manufacturer for led light 8

Learnew low-cost uv led chip manufacturer for led light 9

Learnew low-cost uv led chip manufacturer for led light 10

Learnew low-cost uv led chip manufacturer for led light 11

Learnew low-cost uv led chip manufacturer for led light 12

Learnew low-cost uv led chip manufacturer for led light 13

We have professional laboratories and researchers, and carry out a large number of experiments and tests on the ratio of UV LED CHIP to ensure the scientific and effective spectrum. We offer free consultation services for all your commercial grow project needs, warmly welcome to send us the engineering drawing of your project to get the lighting solutions for your plants.


Company Features
1. Years of solid development has made SHENZHEN LEARNEW OPTOELECTRONICS TECHNOLOGY CO LIMITED. a reputable company. We are one of the major manufacturers and suppliers of uv led chip in China market.
2. Our team of engineers is equipped with decades of experience. They are passionate about manufacturing businesses. Dependent upon particular needs, they can help our customers to identify the most effective project solutions.
3. It is our glorious duty to realize the modernizational improvement of smd led chip industry. Get price!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
