Company Advantages1. Every production stage of Learnew uv led 385nm 395nm is carried out by advanced automatic machines, including material cutting, stamping, welding, and surface polishing. It can produce a large number of lumens consuming less energy
2. SHENZHEN LEARNEW OPTOELECTRONICS TECHNOLOGY CO LIMITED.'s excellent operating performance is praised by society. The product emits high-quality illuminance and is free of dazzling
3. The product is stable in quality and superior in performance. The encapsulation way of the product can resist ultraviolet
UV LED Array series
UV LED R&D,Manufacture is one of important business structure in Learnew.Since 2013,Learnew first time present “Inorganic encapsulation” in high power UVA package,Core technical is we manage the most efficiency output and thermal resistance design.Even in 300-600W,Learnew UV series give best performance in lifetime and continual stable output.
Learnew UV(UVA & UVC) 1-600W series for different UV application,such as offset printer,exposure application,large-scale inkjet printer,3D printer,Printing & Curing application,Sterillization etc.Learnew standard design UVA(360-410nm) & UVC(260-280nm) for your pleasure need.
Product feature
◪ Inorganic encapsulation
◪ Lowest thermal resistance design
◪ High efficiency output
◪ High optical intensity design
◪ Narrow & single peak wavelength design
◪ Pure color output

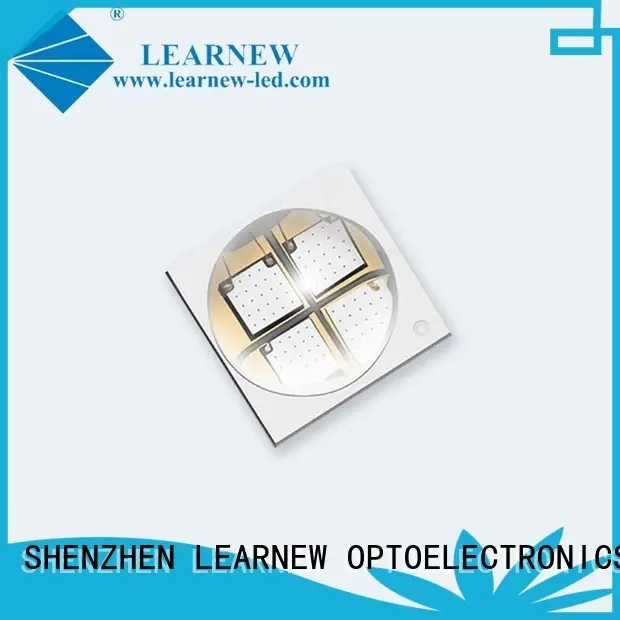

| UV-A | LN-SMD6868UV-P4 |
| POWER | 5-10W |
| Dominant Wavelength | 365nm | 385nm | 395nm |
| Optical Power | 3200-4000mW | 4000-4500mW | 4100-5000mW |
| IF | 500-700mA
(Test=700mA) |
| VF | 12-15V |
| WHOLE SIZE | 6.8*6.8MM |
| Lighting Area | R5.0MM |
| VIEW ANGLE | 60° |
| LENS | QUARTZ GLASS LENS |
| SUBSTRATE | ALN Coppering |
| CHIPS | VERTICAL EPISTAR
(LG or HPO) |
Note:
A.PRICE IS WITHOUT VAT, AND KPCS=1000PCS.
B.EX-WORK QUOTE BASE,SHIPPING COST IS NOT INCLUDED.
C.WARRANTY IS 2 YRS.
D.PREPAID IS REQUIRED ONCE ORDER CONFIRMED,TT BALANCE ONCE READY TO SHIPPING.
E.PRODUCTION CYCLE IS 7-10 WORK DAYS.
F.OEM & ODM IS ACCEPTABLE.
Company Features1. SHENZHEN LEARNEW OPTOELECTRONICS TECHNOLOGY CO LIMITED. has been the preferred choice in the Chinese market. We stand out for providing high-quality
uv led chip . We have a factory featuring a good location, which provides easy access to customers, workers, materials, and so on. This will maximize our business opportunity while minimizing our costs and risks.
2. Our factory is home to state-of-the-art operation facilities. These machines allow us to manufacture products at the fastest speed, thus our quick delivery time can be guaranteed.
3. Our advanced production facilities were all purchased from famous brands. They are equipped with a variety of custom-built setup and work holding fixture, which greatly contributes to our production efficiency. During the production, we will make sure production procedures to comply with relevant environmental regulations. We ensure not to produce noises, harmful smoke, odor, or light pollution that may harm people's health.
