Company Advantages1. The energy consumption based on Learnew most efficient
led chip production has greatly decreased due to technological improvements and energy conservation measures. The product has the advantage of high optical intensity
2. SHENZHEN LEARNEW OPTOELECTRONICS TECHNOLOGY CO LIMITED. also puts a lot of investment into the build of highly professional customer service team. Its low thermal resistance highly increases its lifespan
3. Our professional team guarantees high quality and stable performance. The encapsulation way of the product can resist ultraviolet
4. The product is tested by our QC team who regards the testing as an important factor of product performance. Thus, the conducted testing is highly in line with international testing standards.
5. Our professional quality control team and authoritative third party have carefully and rigorously reviewed the product quality. Its narrow and single peak wavelength provides the most efficiency spectrum

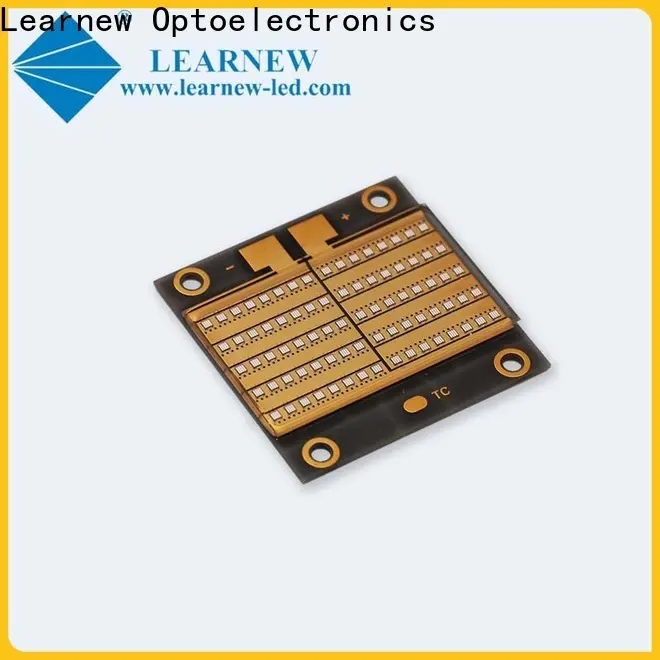

UV LED Array series
UV LED R&D,Manufacture is one of important business structure in Learnew.Since 2013,Learnew first time present “Inorganic encapsulation” in high power UVA package,Core technical is we manage the most efficiency output and thermal resistance design.Even in 300-600W,Learnew UV series give best performance in lifetime and continual stable output.
Learnew UV(UVA & UVC) 1-600W series for different UV application,such as offset printer,exposure application,large-scale inkjet printer,3D printer,Printing & Curing application,Sterillization etc.Learnew standard design UVA(360-410nm) & UVC(260-280nm) for your pleasure need.
Product feature
◪ Inorganic encapsulation
◪ Lowest thermal resistance design
◪ High efficiency output
◪ High optical intensity design
◪ Narrow & single peak wavelength design
◪ Pure color output
| UV-A | LN-CVS35UV-P120 |
| POWER | 192-300W |
| Dominant Wavelength | 365nm | 385nm | 395nm |
| Optical Power | 95000-110000mW | 120000-140000mW | 125000-150000mW |
| IF | 6000-8400mA
(Test=8400mA) |
| VF | 34-38V |
| WHOLE SIZE | 35*35MM |
| Lighting Area | 22*35MM |
| VIEW ANGLE | 120° |
| LENS | QUARTZ GLASS LENS |
| SUBSTRATE | ALN Coppering |
| CHIPS | VERTICAL EPISTAR
(LG or HPO) |
Note:
A.PRICE IS WITHOUT VAT, AND KPCS=1000PCS.
B.EX-WORK QUOTE BASE,SHIPPING COST IS NOT INCLUDED.
C.WARRANTY IS 2 YRS.
D.PREPAID IS REQUIRED ONCE ORDER CONFIRMED,TT BALANCE ONCE READY TO SHIPPING.
E.PRODUCTION CYCLE IS 7-10 WORK DAYS.
F.OEM & ODM IS ACCEPTABLE.
Company Features1. SHENZHEN LEARNEW OPTOELECTRONICS TECHNOLOGY CO LIMITED. has several advanced most efficient led chip production facilities.
2. Our persistent mission is to be one of the most well-known led chip model enterprise. Get an offer!
